22F-D6P0N103 Allen Bradley Vfd PowerFlex 4M-2.2 kW (3 HP) AC Drive

Send Inquiry

Request To Call Back

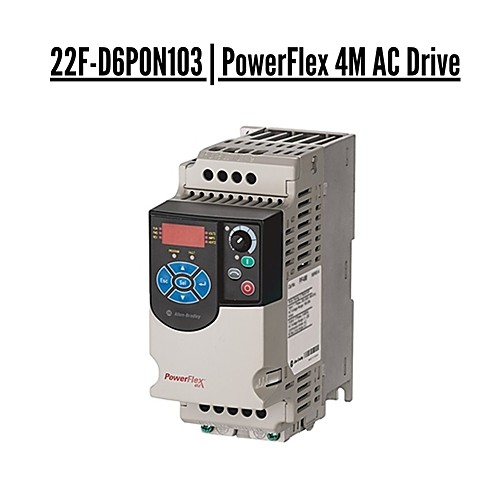

22F-D6P0N103 Allen Bradley Vfd PowerFlex 4M-2.2 kW (3 HP) AC Drive

Name: 22F-D6P0N103 Allen Bradley Vfd PowerFlex 4M-2.2 kW (3 HP) AC Drive
Brand: Noble Automation Controls
Price: 15498.0 INR
Availability: InStock

Price 15498.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

22F-D6P0N103 Allen Bradley Vfd PowerFlex 4M-2.2 kW (3 HP) AC Drive Specification

Insulation Material
Polycarbonate / High-Grade Plastic

Feature
Digital Keypad, LCD Display, Compact Size, Fault Protection

Operating Temperature
-10C to +50C

Shape
Rectangular

Overheating Protection
Yes, Built-in

Connector Type
Screw Terminal

Surface Finish
Matte

Mounting Type
Panel Mount

Power Factor
>0.95

Efficiency
>97%

Humidity %
0-95% (non-condensing)

IP Rating
IP20

Product Type
AC Drive (Variable Frequency Drive)

Application
Motor Speed Control / Industrial Automation

Protection Level
Overload, Short Circuit, Overvoltage, Undervoltage

Frequency (MHz)
50-60 Hz

Rated Voltage
380-480V AC

Energy Consumption
Optimized / As per Drive Loading

Output Type
Three Phase AC

Color
Grey & Black

Dimension (L*W*H)
184 mm x 102 mm x 136 mm

Weight
1.7 kg

Size
Frame B

Phase
Three Phase

Input Voltage
380-480V AC, 3-phase

Connection Type
Terminal Block

No Of Poles
3

Material
Plastic/Metal

Motor Power Output
2.2 kW (3 HP)

Cooling
Fan Cooled

Display Type
Digital LED/LCD

Model Number
22F-D6P0N103

Communication Port
RS485 (Modbus RTU supported)

Series
PowerFlex 4M

Analog Input
0-10V, 4-20mA

Altitude Capability
Up to 1000 m without derating

Relay Output
1 Relay (Form C)

Programmability
Fully Programmable via Keypad or Communication

Digital Inputs
4 programmable digital inputs

Control Method
V/Hz Vector Control

Standards
CE, UL, cUL certified

Maximum Output Frequency
400 Hz

Braking Unit
Built-in Dynamic Braking Chopper

22F-D6P0N103 Allen Bradley Vfd PowerFlex 4M-2.2 kW (3 HP) AC Drive Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
10 Minutes

About 22F-D6P0N103 Allen Bradley Vfd PowerFlex 4M-2.2 kW (3 HP) AC Drive

Based on the part number pattern provided, it appears you are referring to an Allen-Bradley PowerFlex 4M Variable Frequency Drive (VFD). However, please note that the partial part number 22F-D6P5N103 is likely a minor typo. [1, 2, 3, 4]

In the Allen-Bradley catalog system, the output current designation for this range skips from 2.5 Amps (22F-D2P5N103) straight to 6.0 Amps (22F-D6P0N103). There is no official "6P5" (6.5A) model in this lineup. [1, 2, 3, 4, 5]

The exact specifications and details for the closest matched "new-in-box" drives are detailed below. [1, 2]

Corrected Catalog Match Breakdown

Depending on whether your target system requires a 1 HP or 3 HP setup, you are looking for one of these two configurations:

Catalog Number [1, 2, 3, 4, 5]	Horsepower	Output Current	Input Voltage	Frame Size
22F-D2P5N103	1 HP (0.75 kW)	2.5 Amps	480V AC (3-Phase)	Frame A
22F-D6P0N103	3 HP (2.2 kW)	6.0 Amps	480V AC (3-Phase)	Frame B

Standard "Box" Features (What's Included)

When purchased factory-sealed/new in the box, these industrial automation drives include the following standard features: [1, 2]

Integral Keypad: Built-in digital display panel featuring a local potentiometer for easy, out-of-the-box speed regulation.
Enclosure Rating: IP20 / UL-NEMA Type Open configuration designed strictly for panel mounting inside a larger control cabinet.
Communication Port: Embedded RS-485 serial connection utilized for basic Modbus RTU networking and PC-based programming.
Physical Hardware: Fixed terminal block connection points. Please note these units omit an internal brake IGBT and do not include a CE-compliant filter. [1, 2, 3, 4, 5]

If you are looking to source this specific replacement part or verify its current availability, let me know which horsepower profile (1 HP or 3 HP)

Advanced Motor Control and Versatility

Designed for efficiency and adaptability, the PowerFlex 4M 22F-D6P0N103 offers dynamic V/Hz vector control and extends operation up to a 400 Hz output frequency. Its integrated keypad and LCD panel streamline drive programming, while RS485 Modbus RTU ensures connectivity in a wide array of industrial environments.

Built-in Protection and Reliability

This drive prioritizes system safety with comprehensive protections-including overload, short circuit, overvoltage, and undervoltage features-along with overheating safeguards. The built-in braking unit enhances stopping performance. Built from high-quality materials, it withstands rigorous usage in challenging environments up to 1000 meters altitude without derating.

FAQ's of 22F-D6P0N103 Allen Bradley Vfd PowerFlex 4M-2.2 kW (3 HP) AC Drive:

Q: How does the 22F-D6P0N103 enhance motor control in industrial automation?

A: The PowerFlex 4M AC Drive employs V/Hz vector control, allowing precise adjustment of motor speed and torque. This enables optimized performance and energy efficiency in various industrial automation and motor speed control applications.

Q: What programming methods are available for this AC drive?

A: The drive offers flexible programmability through its digital keypad and LCD display or remotely via the RS485 Modbus RTU communication port. Users can easily configure parameters to suit specific operational needs.

Q: When is the built-in dynamic braking chopper utilized?

A: The dynamic braking chopper activates during rapid deceleration or emergency stops, allowing excess energy to dissipate safely and quickly, enhancing braking response and protecting the drive and motor from damage.

Q: Where is the ideal mounting location for the PowerFlex 4M 22F-D6P0N103?

A: This AC drive is designed for panel mounting and should be installed in a controlled, indoor industrial environment with ambient temperatures between -10C and +50C. Ensure the installation area meets IP20 standards and allows for adequate ventilation.

Q: What are the key benefits of using this drive for motor speed control?

A: Key benefits include high operational efficiency (>97%), robust protection features, compact size for versatile installations, easy integration via RS485, and seamless programming. It helps reduce energy consumption and elevates system reliability.

Q: How do you connect input signals to the drive?

A: Inputs are connected via terminal blocks. The drive supports analog inputs (0-10V, 4-20mA) and four programmable digital inputs, allowing integration with various sensors or control systems for customized automation.
