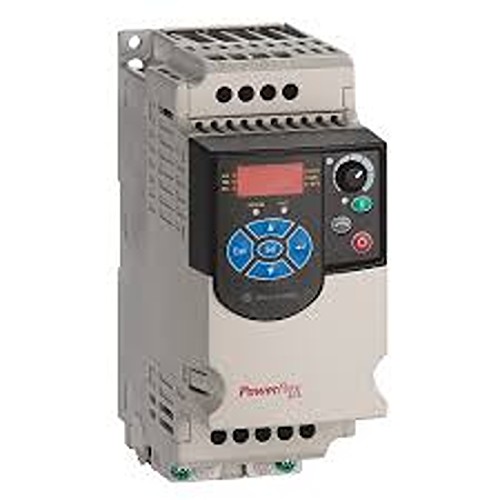

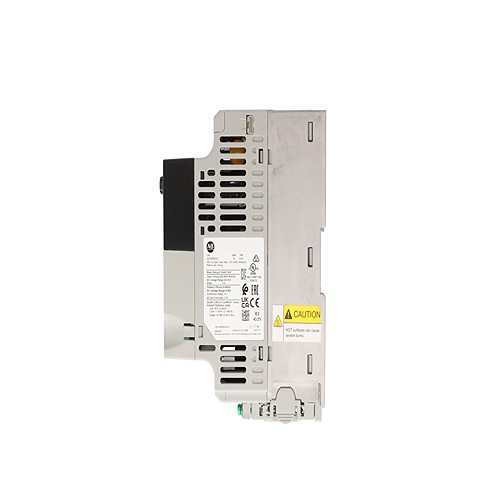

22F-D2P5N103 Allen Bradley Vfd PowerFlex 4M- 0.75 kW (1 HP) AC Drive

Send Inquiry

Request To Call Back

22F-D2P5N103 Allen Bradley Vfd PowerFlex 4M- 0.75 kW (1 HP) AC Drive

Name: 22F-D2P5N103 Allen Bradley Vfd PowerFlex 4M- 0.75 kW (1 HP) AC Drive
Brand: Noble Automation Controls
Price: 10997.0 INR
Availability: InStock

Price 10997.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

22F-D2P5N103 Allen Bradley Vfd PowerFlex 4M- 0.75 kW (1 HP) AC Drive Specification

Shape
Rectangular

Connector Type
Screw Terminal

Efficiency
Up to 97%

Humidity %
5% to 95% (Non-condensing)

Operating Temperature
-10C to +50C

IP Rating
IP20

Feature
Motor Overload Protection, Energy Efficient

Surface Finish
Matte (Industrial Enclosure)

Overheating Protection
Yes, Integrated

Insulation Material
Industrial Grade

Power Factor
>0.95 (Typical)

Mounting Type
Panel Mount

Product Type
AC Drive (Variable Frequency Drive)

Application
Industrial Motor Speed Control

Protection Level
Standard (Refer to IP Rating)

Frequency (MHz)
50/60 Hz

Rated Voltage
342-528V AC

Energy Consumption
Optimized (Depends on Load)

Output Type
3-Phase AC

Color
Grey/Black (Enclosure)

Dimension (L*W*H)
(Approximate, refer to datasheet)

Weight
2.02 kg

Size
Compact

Input Voltage
342-528V AC, 3 Phase

Phase
Three Phase

Connection Type
Panel Mount, Terminal Block

Material
Plastic & Metal (Enclosure Construction)

No Of Poles
3 Phase

Catalog Number
22F-D2P5N103

Output Current
2.5A

Display
Status LEDs

Standards/Certifications
CE, UL, cUL, EAC

Control Method
V/Hz Control

Date of Manufacture
September 2018

Serial Number
FD2PSN1903200

Short Circuit Protection
Integrated

Motor Rating
0.75 kW / 1 HP

Model Number
22F-D2P5N103

Series
PowerFlex 4M

22F-D2P5N103 Allen Bradley Vfd PowerFlex 4M- 0.75 kW (1 HP) AC Drive Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
10 Minutes

22F-D2P5N103 Allen Bradley Vfd PowerFlex 4M- 0.75 kW (1 HP) AC Drive About

Based on your specific catalog number (22F-D2P5N103), your hardware is built with the following parameters: [1, 2]

Series: PowerFlex 4M Adjustable Frequency AC Drive
Voltage Class: 480V AC, 3-Phase Input (indicated by D)
Output Rating: 2.5 Amps / 0.75 kW / 1.0 HP (indicated by 2P5)
Enclosure Type: Panel Mount IP20 / NEMA Open Type (indicated by N1)
HIM / Interface: Fixed Keypad (indicated by 0)
Emission Class: No EMC Filter (indicated by 3) [1, 2, 3]

Common Manual Reference Sections

Wiring & Mounting: Frame-specific dimensions and physical space clearings can be referenced directly in Chapter 1 of the User Manual. [1]
Programming Group: Basic configuration parameter modifications (like acceleration/deceleration times and motor nameplate parameters) are found in Chapter 2. [1, 2]
Troubleshooting: Review Appendix A of the main publication for an overview of fault code definitions (such as F4 Undervoltage or F5 Overvoltage) and recovery steps. [1]

What specific task are you trying to accomplish with your drive? Let me know if you need help with wiring configurations (2-wire vs 3-wire control), finding a specific fault code solution, or setting up parameter programming

Efficient Performance for Industrial Applications

Specially crafted for industrial motor speed control, the PowerFlex 4M VFD ensures smooth and reliable operation. Its advanced V/Hz control method and overload protection safeguard your equipment while optimizing energy consumption. Designed to support a range of demanding applications, this drive delivers superior performance and enhanced motor longevity.

Easy Installation and Versatile Mounting

Thanks to its compact, panel-mountable construction, the 22F-D2P5N103 is ideal for space-sensitive setups. The screw terminal connections and rectangular form factor streamline integration within control cabinets. Just follow the datasheet instructions for hassle-free installation, ensuring secure and efficient connectivity in industrial environments.

Reliable Protection and Monitoring

Equipped with integrated short circuit and overheating protection, the drive offers peace of mind for continuous operation. The status LED display provides clear visual feedback on system health, allowing quick diagnostics and reduced downtime. Its robust enclosure and IP20 rating protect against dust and accidental contact, while industrial-grade insulation ensures safety.

FAQ's of 22F-D2P5N103 Allen Bradley Vfd PowerFlex 4M- 0.75 kW (1 HP) AC Drive:

Q: How do I install the 22F-D2P5N103 PowerFlex 4M VFD in my control panel?

A: Installation involves mounting the drive onto a panel using its compact, rectangular enclosure. Simply connect to the panel mount terminal block and follow the wiring instructions in the datasheet. Ensure input and output connections use three-phase power within the specified voltage range (342-528V AC).

Q: What are the primary benefits of using this VFD for motor speed control?

A: This VFD offers precise control over motor speed, integrated protection against overloads and short circuits, high efficiency (up to 97%), and enhanced energy optimization based on load, resulting in reduced operational costs and increased motor lifespan.

Q: When should the VFD's overload or overheating protection features be used?

A: The overload and overheating protection features are automatically active during operation, continuously safeguarding your motor and the drive. No manual activation is required; if the drive detects abnormal conditions, it responds by triggering protection modes or issuing LED alerts.

Q: Where is the best environment to operate the 22F-D2P5N103 VFD?

A: This VFD performs reliably in industrial environments with temperatures ranging from -10C to +50C and humidity between 5% to 95% (non-condensing). Ensure installation within an IP20-rated environment to avoid excess dust and accidental contact.

Q: What process should I follow to monitor drive status and faults?

A: Utilize the front-mounted status LEDs to identify operational states and potential faults. Refer to the user manual for interpretation of LED signals. Regular visual checks help ensure system health and minimize downtime.

Q: How does this VFD improve energy efficiency in industrial setups?

A: By adjusting motor speed based on actual load requirements and using the V/Hz control method, this drive minimizes energy consumption. Its typical power factor is >0.95, contributing to an optimized and cost-effective operation.
