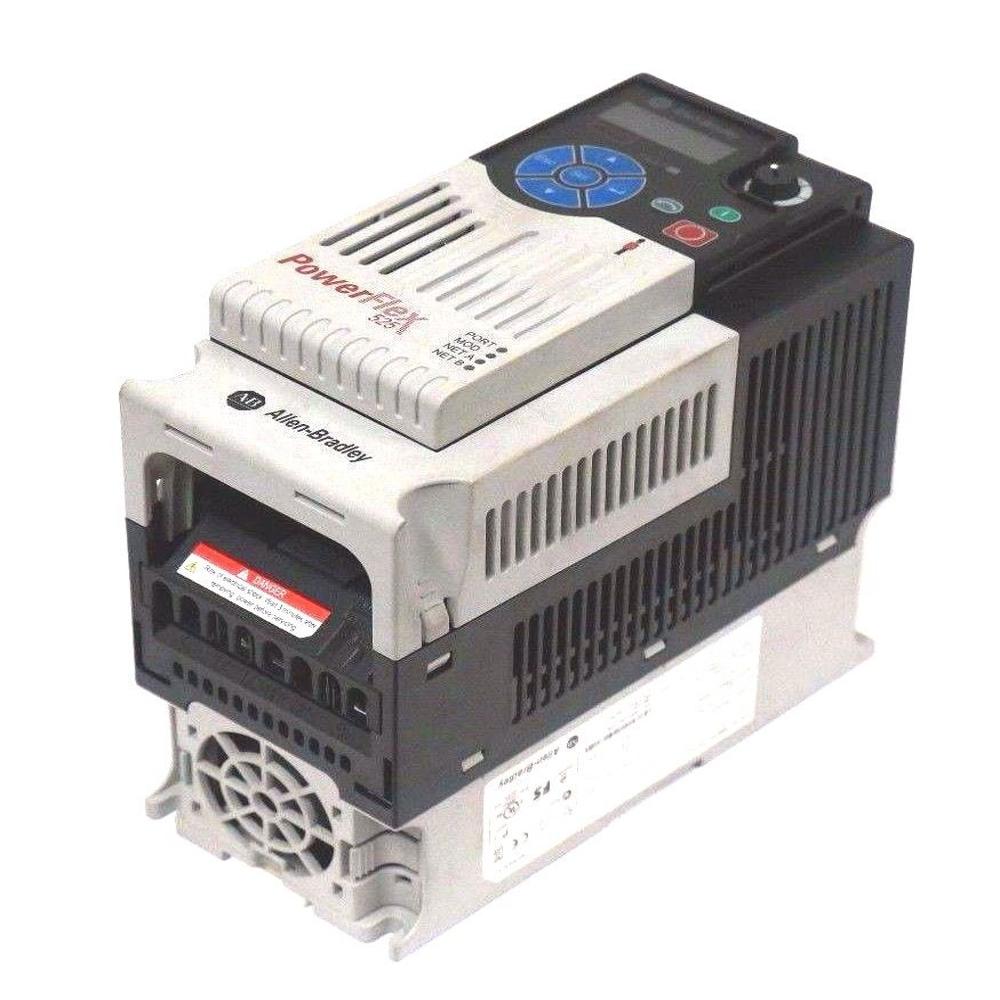

25B-D6P0N104 Allen Bradley PowerFlex 525 2.2kW (3Hp) AC Drive

Send Inquiry

Request To Call Back

25B-D6P0N104 Allen Bradley PowerFlex 525 2.2kW (3Hp) AC Drive

Name: 25B-D6P0N104 Allen Bradley PowerFlex 525 2.2kW (3Hp) AC Drive
Brand: Noble Automation Controls
Price: 20000.0 INR
Availability: InStock

Price 20000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

25B-D6P0N104 Allen Bradley PowerFlex 525 2.2kW (3Hp) AC Drive Specification

Connector Type
Screw/Pluggable Terminal Blocks

Overheating Protection
Yes, with Integrated Thermal Protection

Feature
Built-in EtherNet/IP, Safe Torque Off, Removable Control Terminal

Humidity %
5%-95% Non-condensing

Power Factor
>=0.98

Insulation Material
High Grade Insulated Resin

Efficiency
>=96%

Mounting Type
Panel Mount

Shape
Rectangular

Operating Temperature
-20C to +50C

Surface Finish
Textured Finish

IP Rating
IP20

Product Type
AC Drive

Application
Industrial Automation, Motor Control

Protection Level
Overvoltage, Overcurrent, Short Circuit

Frequency (MHz)
0-400 Hz (Output Frequency)

Rated Voltage
380-480V AC

Energy Consumption
Based on Load, Highly Efficient

Output Type
Variable Frequency AC

Color
Black & Grey

Dimension (L*W*H)
130 x 100 x 152 mm

Weight
1.9 kg

Size
Frame A

Phase
Three Phase

Input Voltage
380-480V AC 3-Phase

Material
Plastic, Metal

Connection Type
Screw Terminal

No Of Poles
N/A (Drive, not Motor)

Digital Outputs
1 relay, 1 transistor

Analog Inputs
2

Series
PowerFlex 525

Digital Inputs
7 configurable

Storage Temperature
-40C to +70C

Motor Type Supported
Induction Motor, Permanent Magnet Motor

Communication Interfaces
EtherNet/IP, Modbus, RS-485

Display
LED Display with Status Indicators

Control Method
V/F, Sensorless Vector Control

Altitude
Up to 1000 meters without Derating

Model Number
25B-D6P0N104

Compliance Standards
CE, UL, cUL, RoHS, EAC

Rated Power
2.2 kW (3 HP)

Braking Function
Built-in Dynamic Braking Transistor

Programming Method
Keypad, USB, Ethernet

Analog Outputs
1

25B-D6P0N104 Allen Bradley PowerFlex 525 2.2kW (3Hp) AC Drive Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
10 Minutes

25B-D6P0N104 Allen Bradley PowerFlex 525 2.2kW (3Hp) AC Drive About

The 25B-D6P0N104 is an Allen-Bradley PowerFlex 525 Adjustable Frequency AC Drive manufactured by Rockwell Automation. It features a power rating of 2.2 kW (3.0 HP) for both normal and heavy-duty industrial motor control applications. [1, 2, 3, 4, 5]

Full technical specifications, installation metrics, and official documentation links are detailed below. [1]

Technical Specifications

Series: PowerFlex 525
Input Voltage: 380480V AC, 3-Phase (323528V AC allowable range)
Output Voltage: 0460V AC, 3-Phase
Output Current: 6.0 Amps
Power Rating: 2.2 kW / 3.0 HP
Frame Size: Frame A
Enclosure Type: IP20 NEMA / Open Type
EMC Filter: Not Included (indicated by the "1" in position 11 of the part number)
Braking Mechanism: Standard IGBT dynamic braking
Motor Control Modes: Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed Loop Velocity Vector Control, and Permanent Magnet Motor Control [1, 2, 3, 4, 5]

Versatile Motor Control Capabilities

The PowerFlex 525 drive supports both induction and permanent magnet motors, offering operational flexibility for modern industrial systems. With variable frequency output up to 400 Hz, it efficiently manages a variety of automation tasks. Seven configurable digital inputs and multiple analog I/Os make it adaptable to diverse applications, including equipment requiring precise speed and torque control.

Robust Protection and Compliance Standards

This AC drive is engineered for safe, dependable use, featuring integrated protection against overvoltage, overcurrent, and short circuits. Compliance with CE, UL, cUL, RoHS, and EAC standards ensures global compatibility and adherence to industry safety requirements. The built-in dynamic braking transistor enhances protection and performance under heavy loads.

Effortless Installation and Operation

Weighing only 1.9 kg and featuring a compact frame (130 x 100 x 152 mm), the PowerFlex 525 is simple to install with screw terminals and panel mounting. The removable control terminal and multiple programming interfaces-keypad, USB, Ethernet-enable quick setup, easy configuration, and seamless integration into existing industrial networks.

FAQ's of 25B-D6P0N104 Allen Bradley PowerFlex 525 2.2kW (3Hp) AC Drive:

Q: How does the PowerFlex 525 AC drive enhance motor control in industrial applications?

A: The PowerFlex 525 provides precise speed and torque management for induction and permanent magnet motors using variable frequency or sensorless vector control. Its advanced features, including dynamic braking and seven configurable digital inputs, ensure adaptability and dependable motor performance in diverse automation setups.

Q: What programming methods are available for configuring the 25B-D6P0N104 drive?

A: You can configure the drive using a built-in keypad, USB interface, or Ethernet connection. This flexibility allows both on-site manual programming and remote configuration via networked industrial control systems.

Q: When should I use the built-in dynamic braking function?

A: The built-in dynamic braking transistor should be utilized when applications require rapid deceleration or frequent start-stop cycles. It safely dissipates surplus energy generated during braking, protecting the drive and maintaining smooth operation.

Q: Where can the PowerFlex 525 drive be installed, considering environmental requirements?

A: This drive is designed for panel mounting in industrial environments. It operates reliably within a temperature range of -20C to +50C (up to 1000 meters altitude without derating), provided the area is within 5%-95% non-condensing humidity and meets IP20 standards.

Q: What benefits do the built-in communication interfaces offer?

A: Integrated EtherNet/IP, Modbus, and RS-485 interfaces enable seamless networking and remote monitoring, simplifying system integration and enhancing control across automated systems. This streamlines real-time data exchange and supports flexible factory automation.

Q: How does the PowerFlex 525 ensure operational safety and protection?

A: Robust safeguards protect against overvoltage, overcurrent, short circuits, and overheating. Features like Safe Torque Off (STO) and thermal protection contribute to safe operation, while compliance certifications provide assurance of international safety standards.
