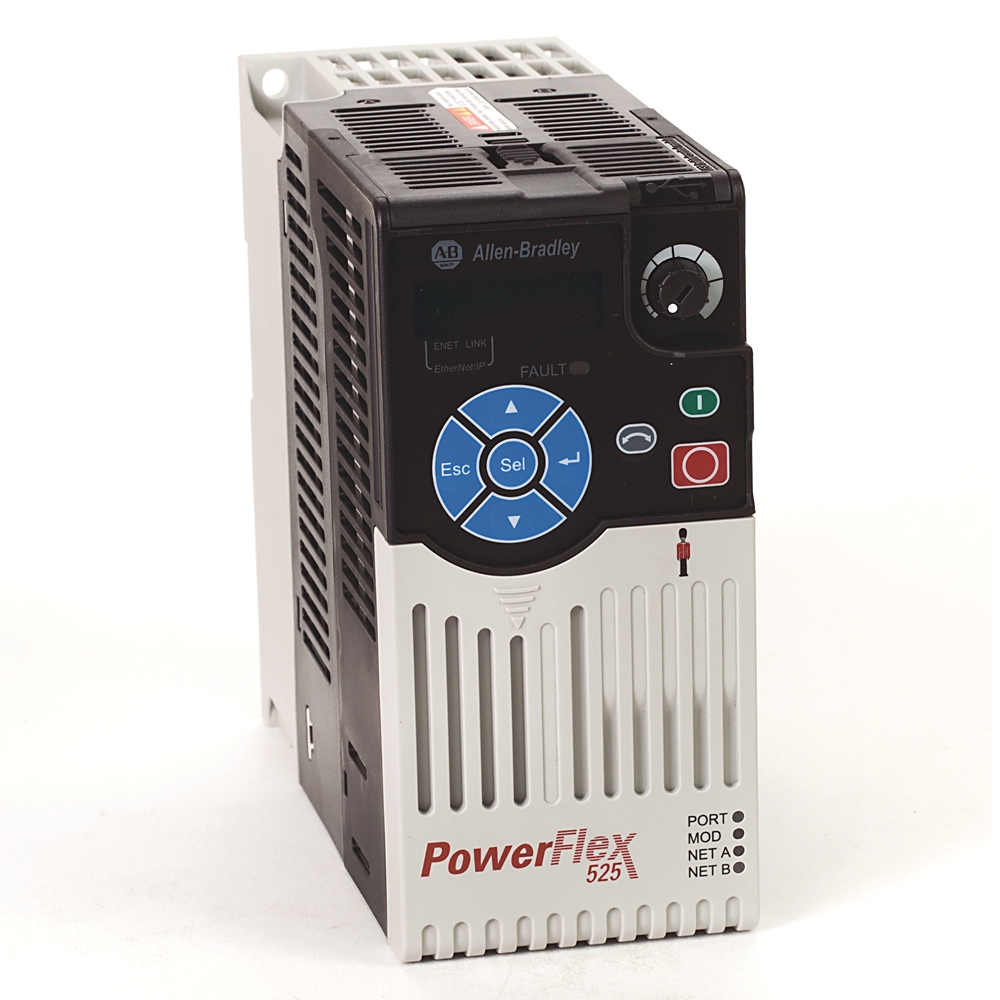

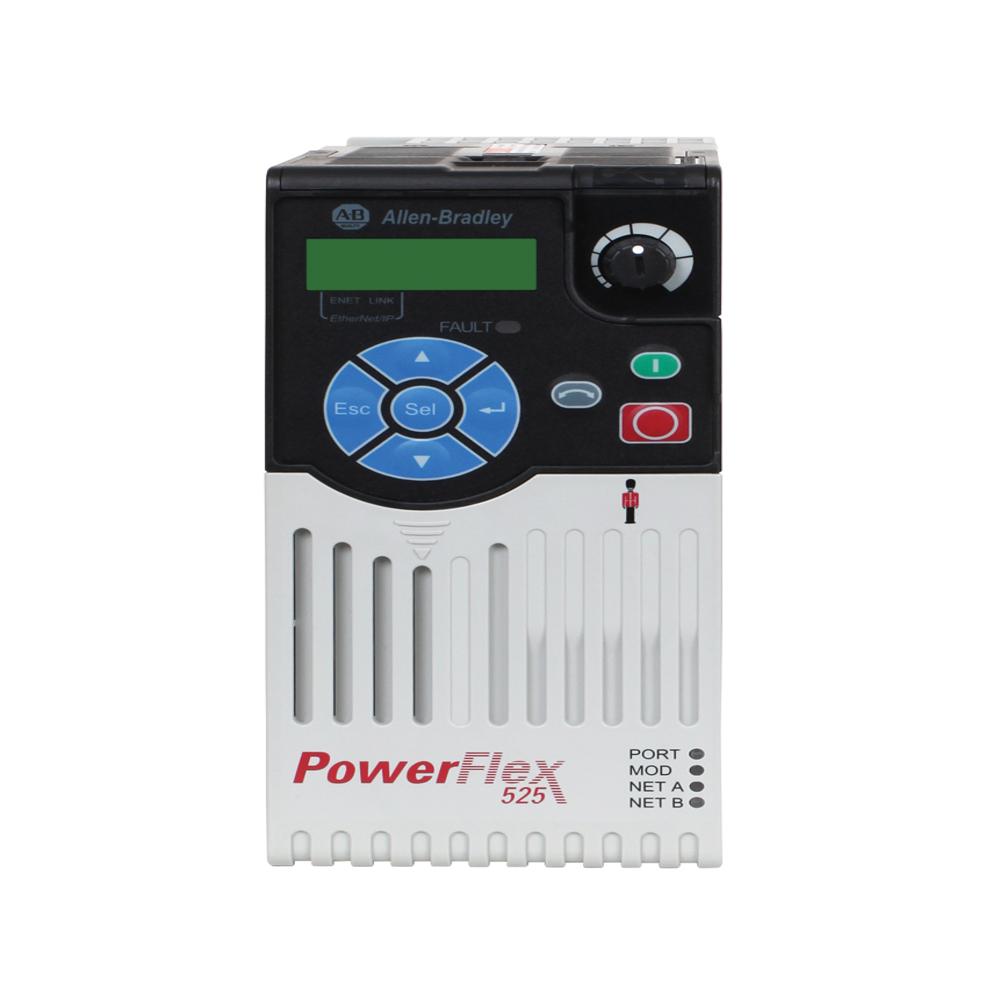

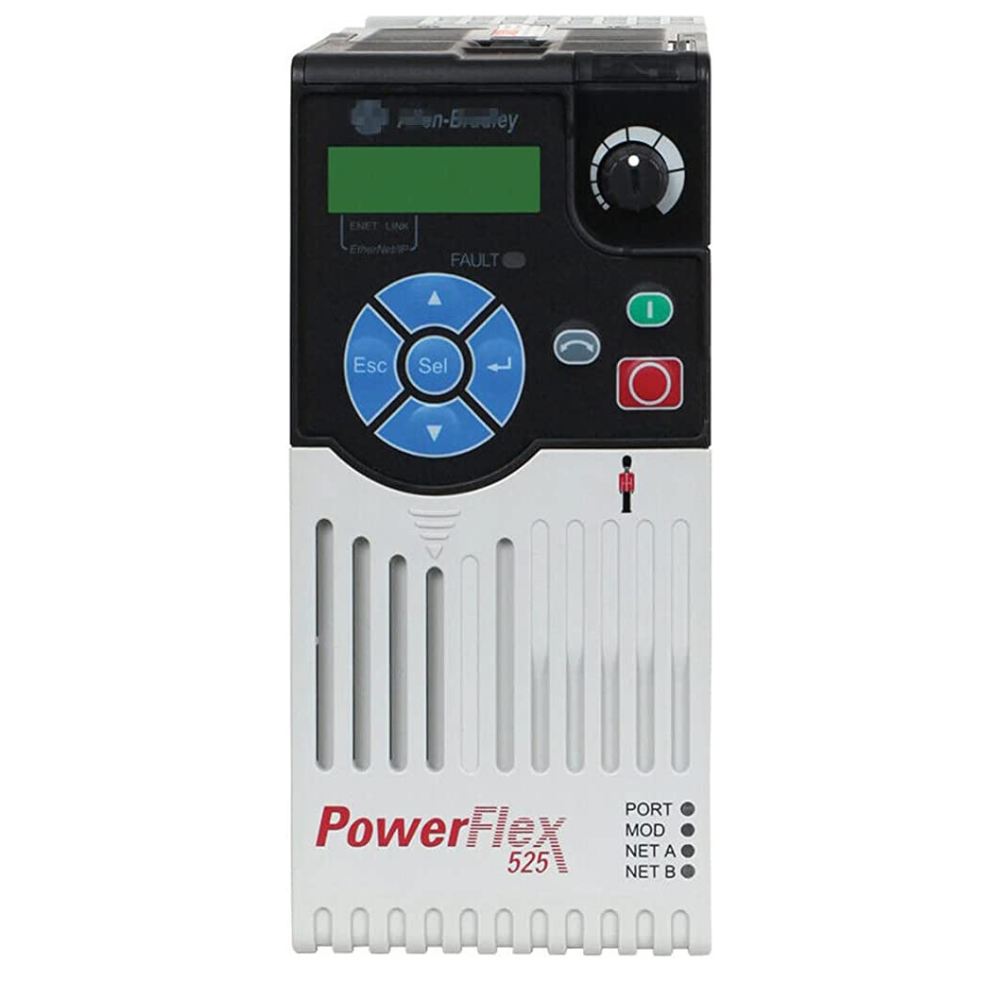

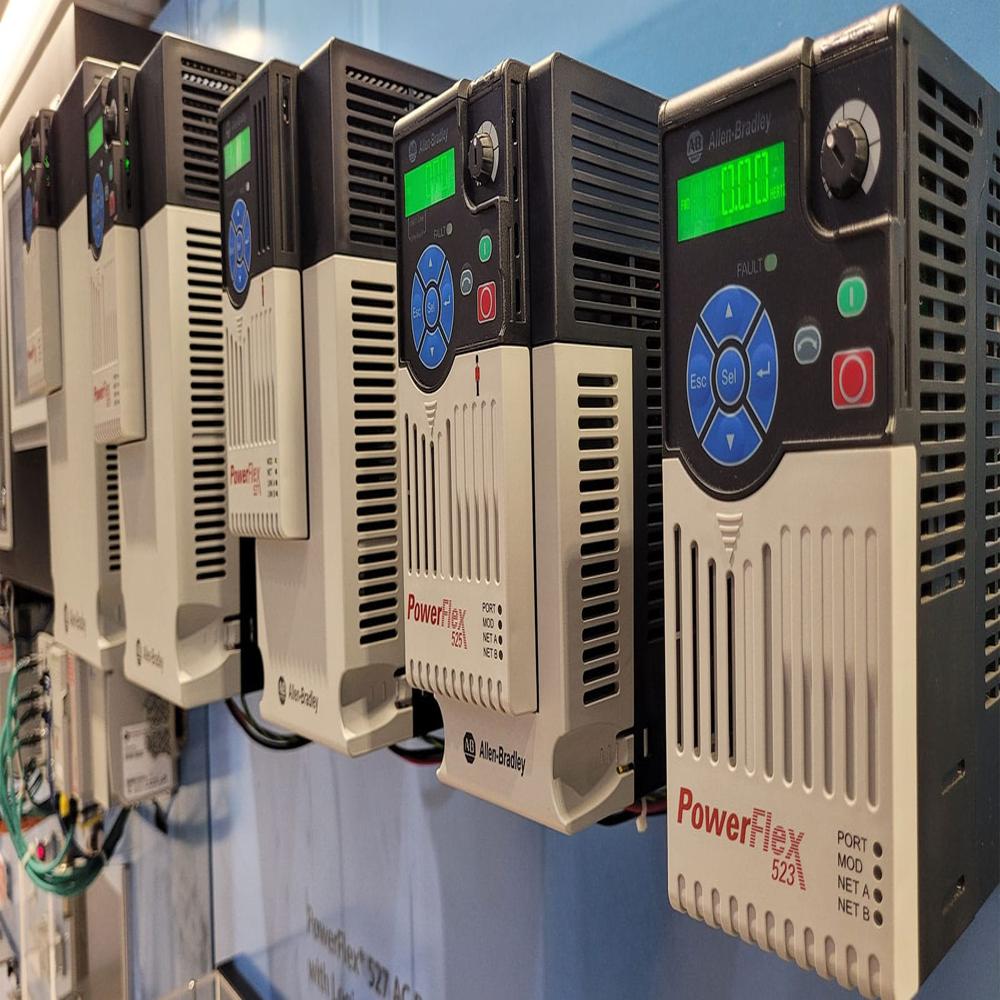

25B-D2P3N104 PowerFlex 525 0.75kW (1Hp) AC Drive

Name: 25B-D2P3N104 PowerFlex 525 0.75kW (1Hp) AC Drive
Brand: Noble Automation Controls
Price: 20000.0 INR
Availability: InStock

Price 20000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

25B-D2P3N104 PowerFlex 525 0.75kW (1Hp) AC Drive Specification

Shape
Rectangular

Surface Finish
Matte

Insulation Material
High-grade plastic

IP Rating
IP20

Feature
Integrated EtherNet/IP, Safe Torque Off, Removable I/O terminal blocks

Connector Type
Plug/Terminal

Power Factor
>0.98

Mounting Type
Panel/Wall Mount

Humidity %
5% to 95%, non-condensing

Efficiency
Up to 98%

Overheating Protection
Yes, via internal thermal sensors

Operating Temperature
-20C to +50C

Product Type
AC Drive (Variable Frequency Drive)

Application
Industrial Motor Control, Conveyors, Pumps, Fans

Protection Level
Overload/Short-circuit/Overvoltage/Undervoltage/Phase Loss

Frequency (MHz)
50/60 Hz

Rated Voltage
Input: 200-240V AC

Energy Consumption
0.75 kW (Rated Output Power)

Output Type
3-phase AC Motor Output

Color
Black & White

Dimension (L*W*H)
160 mm x 72 mm x 145 mm

Weight
1.1 kg

Phase
Three Phase / Single Phase Input

Input Voltage
200-240V AC, 1- or 3-phase

Size
Compact

Connection Type
Screw Terminal, Plug-in Port

No Of Poles
Not Applicable (Drive)

Material
Plastic body with metal heatsink

Digital Inputs
7 programmable

Display
LED and Keypad with Rotary Dial

Braking
Internal Dynamic Braking Resistor Supported

Model Number
25B-D2P3N104

Output Current
2.3 Amp

Series
PowerFlex 525

Relay Outputs
2 programmable

Standards Compliance
CE, UL, cUL, RoHS, REACH

Altitude
Up to 1000m without derating

Analog Inputs
2 (Voltage/Current)

Form Factor
Book Style

Programming
Remote/Local via USB or HMI

Control Method
V/Hz, Sensorless Vector Control, Economizer Mode

Stopping Mode
Ramp or Coast

Motor Power (HP)
1 HP

Automatic Restart
Configurable

Cooling Method
Fan cooled

Motor Compatibility
Induction and Permanent Magnet Motors

Communication Ports
EtherNet/IP, RS-485, USB

25B-D2P3N104 PowerFlex 525 0.75kW (1Hp) AC Drive Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
10 Minutes

About 25B-D2P3N104 PowerFlex 525 0.75kW (1Hp) AC Drive

The 25B-D2P3N104 is an Allen-Bradley PowerFlex 525 Adjustable Frequency AC Drive manufactured by Rockwell Automation. It features built-in EtherNet/IP communications, standard safety features, and a modular layout designed for quick installation. [1, 2, 3, 4, 5]

Below is the comprehensive technical datasheet compiled from official Rockwell Automation Technical Specifications. [1]

Electrical Specifications

Input Voltage Class: 380...480V AC (-15%, +10%)
Input Phases: 3-Phase
Operating Input Range: 323...528V AC
Output Voltage Range: 0...460V AC (3-Phase)
Output Current: 2.3 Amps
Normal Duty Power Rating: 1.0 HP (0.75 kW)
Heavy Duty Power Rating: 1.0 HP (0.75 kW)
Frequency Rating: 50 / 60 Hz [1, 2, 3]

Mechanical & Physical Attributes

Frame Size: Frame A
Enclosure Rating: IP20 NEMA / Open Type
EMC Filter: No Filter
Braking Mechanism: Dynamic braking IGBT transistor included
Cooling/Mounting: Panel mount or DIN rail mounting capability; supports "Zero Stacking" for saving panel footprint
Physical Width: 72.0 mm (2.83 in.)
Physical Height: 152.0 mm (5.98 in.)
Physical Depth: 172.0 mm (6.77 in.)
Approximate Shipping Weight: 1.1 kg (2.4 lbs) [1, 2, 3, 4, 5]

Control & Integrated Features

Motor Control Modes: Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed Loop Velocity Vector Control, Permanent Magnet Motor Control
Embedded Communications: Single-port EtherNet/IP, Integral RS485 (Modbus RTU)
Safety Integration: Built-in hardwired Safe Torque-Off (STO) certified for SIL2 / Cat 3
Built-in Interfaces: Integrated keypad with LCD human interface module (HIM)
Programming Environments: Studio 5000 Logix Designer or Connected Components Workbench software via standard USB connection [1, 2, 3, 4, 5, 6, 7]

Environmental Limits

Operating Temperature: -20 C to 50 C (-4 F to 122 F) without derating
Maximum Temperature: Up to 70 C (158 F) with the installation of a control module fan kit and appropriate current derating [1, 2, 3, 4]

If you need more specifics, tell me if you are looking for the wiring schematic, a parameter list, or the complete fault code index for debugging

Advanced Motor Control Technology

Leveraging V/Hz and sensorless vector control, the PowerFlex 525 enables efficient and precise speed regulation for motors. With a built-in economizer mode, you benefit from optimized energy consumption in various industrial applications including conveyors, pumps, and fans.

User-Friendly Operation and Integration

The drive is equipped with an intuitive LED display, rotary dial, and removable terminal blocks for straightforward programming and maintenance. Integrated communications such as EtherNet/IP, RS-485, and USB ensure seamless integration into modern automation networks.

Reliable Performance and Safety Features

Engineered to withstand demanding industrial settings, the PowerFlex 525 offers advanced protection, including overload, short-circuit, and phase loss safeguards. Safe Torque Off and automatic restart features further bolster operational security and uptime.

FAQ's of 25B-D2P3N104 PowerFlex 525 0.75kW (1Hp) AC Drive:

Q: How can I program and monitor the PowerFlex 525 AC Drive?

A: Programming and monitoring the PowerFlex 525 can be performed locally using the LED keypad and rotary dial or remotely via USB or HMI interface. Additionally, integrated communication ports such as EtherNet/IP and RS-485 allow for seamless industrial network integration.

Q: What types of motors are compatible with this AC drive?

A: The 25B-D2P3N104 supports both induction and permanent magnet motors, offering versatility for a wide range of industrial applications. This adaptability ensures efficient control in conveyors, fans, and pumps.

Q: When is it necessary to use the internal dynamic braking resistor?

A: The internal dynamic braking resistor is utilized during rapid deceleration or when quick stopping of the motor is required, ensuring controlled braking without external hardware. This feature is especially beneficial in applications involving frequent starts and stops.

Q: Where can the PowerFlex 525 AC Drive be mounted for optimal performance?

A: This drive is designed for compact installation on panels or wall mounts. Its book-style form factor and IP20 rating make it suitable for indoor industrial environments, providing convenience during both new installs and retrofits.

Q: What process should I follow to ensure proper protection and longevity?

A: To safeguard the drive, ensure it is installed within its rated altitude (up to 1000m without derating) and temperature range (-20C to +50C). Regularly inspect for dust accumulation on the cooling fan and confirm all terminal connections are secure and insulated.

Q: How does the PowerFlex 525 enhance energy efficiency?

A: With an integrated economizer mode and up to 98% operational efficiency, the drive minimizes energy consumption. Its power factor correction and advanced motor control further contribute to reduced operational costs in continuous industrial usage.

Q: What are the key benefits of using this AC drive in industrial settings?

A: The PowerFlex 525 provides precise motor control, robust protections, flexible I/O options, and easy integration, enhancing the reliability, efficiency, and safety of industrial automation systems. Its automatic restart and Safe Torque Off features also minimize downtime and improve worker safety.
