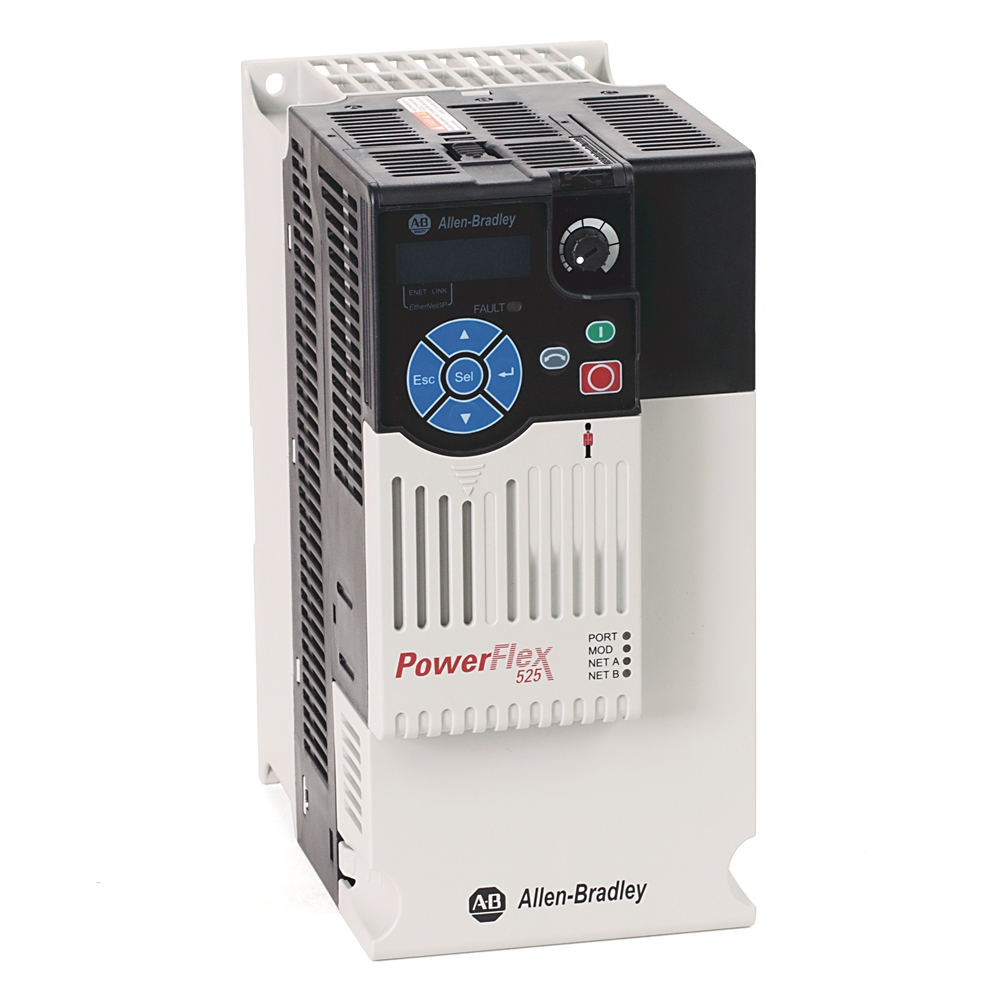

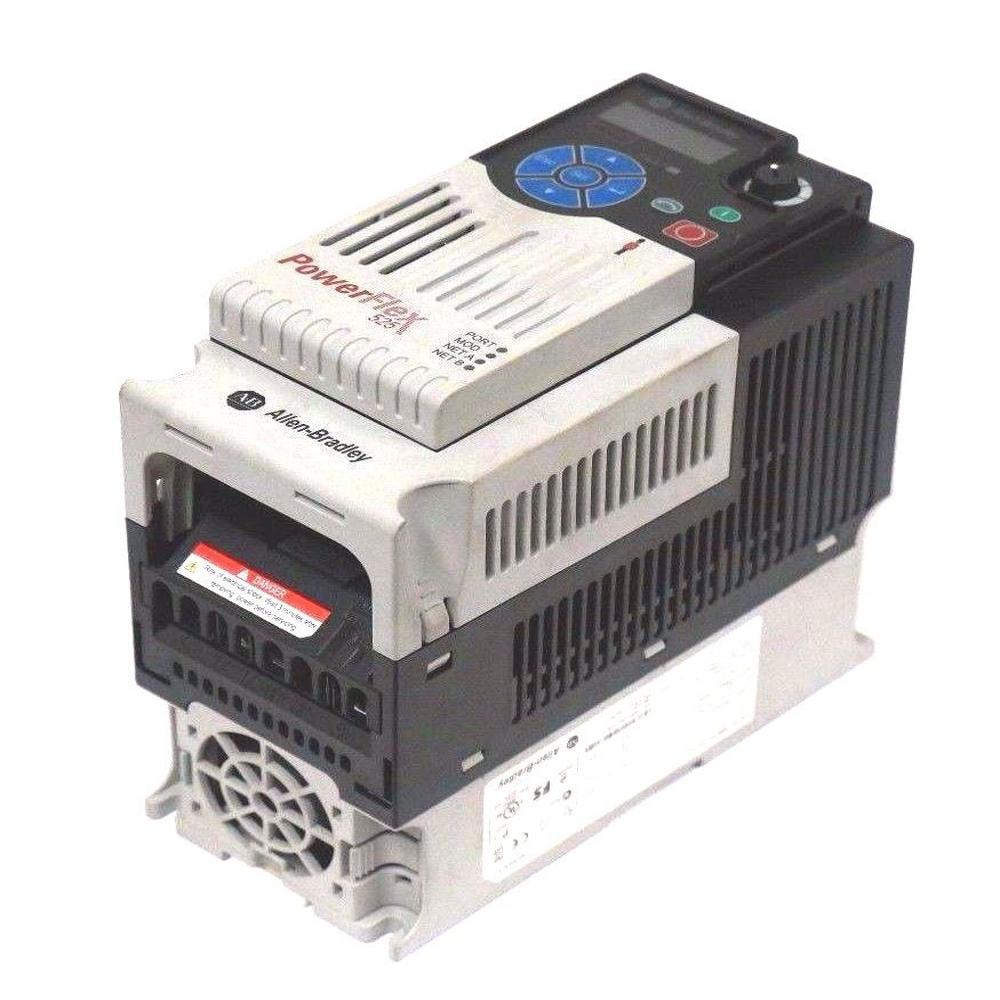

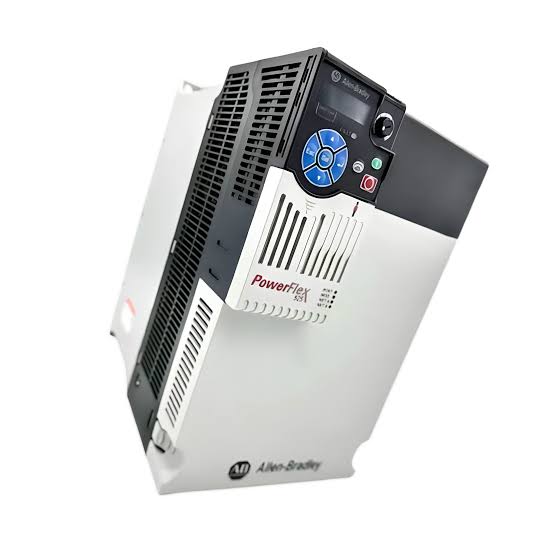

25B-D017N104 PowerFlex 525 7.5kW (10Hp) AC Drive

Send Inquiry

Request To Call Back

25B-D017N104 PowerFlex 525 7.5kW (10Hp) AC Drive

Name: 25B-D017N104 PowerFlex 525 7.5kW (10Hp) AC Drive
Brand: Noble Automation Controls
Price: 42000.0 INR
Availability: InStock

Price 42000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

25B-D017N104 PowerFlex 525 7.5kW (10Hp) AC Drive Specification

Overheating Protection
YES

Humidity %
0-95% Non-condensing

IP Rating
IP20

Operating Temperature
-20C to 50C

Efficiency
>95%

Feature
Embedded Ethernet/IP & DeviceNet, Removable Control Module, Built-in Safety, USB Programming

Connector Type
Screw Terminals

Insulation Material
High-grade Engineering Plastic

Shape
Rectangular

Surface Finish
Matte

Mounting Type
Panel Mount

Power Factor
>=0.98

Product Type
AC Drive/Inverter

Application
Motor Speed Control, Industrial Automation

Protection Level
Overvoltage, Overcurrent, Short Circuit, Ground Fault

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480V AC

Energy Consumption
Depends on Load

Output Type
Variable Frequency AC Output

Color
Black/White

Dimension (L*W*H)
160 x 130 x 180 mm

Weight
2.6 kg

Size
Frame B

Phase
Three Phase

Input Voltage
380-480V AC

Connection Type
Screw Terminal

Material
Plastic, Metal

No Of Poles
NA (AC Drive)

Program Memory
Parameter Clone via USB

Series
PowerFlex 525

User Interface
Integrated Keypad and Port for Remote Keypad

Digital Inputs
5

Input Current
17A

Display
LCD with Keypad

Digital Outputs
1 Relay, 1 Transistor

Vibration Resistance
1G (10-60 Hz)

Regenerative Braking
Supported (external resistor)

Altitude Limit
Up to 1000 m without derating

Analog Inputs
2

Communication Protocols
EtherNet/IP, DeviceNet, Modbus-TCP

Power Output
7.5 kW (10 Hp)

Fan Cooling
Built-in cooling fan

Safety Features
Safe Torque Off (STO)

Braking Transistor
Built-in

Model Number
25B-D017N104

Short Circuit Protection
Electronic/Automatic

Control Algorithm
V/Hz, Sensorless Vector Control

Analog Outputs
1

25B-D017N104 PowerFlex 525 7.5kW (10Hp) AC Drive Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
10 Minutes

About 25B-D017N104 PowerFlex 525 7.5kW (10Hp) AC Drive

The Allen-Bradley 25B-D017N104 is a PowerFlex 525 Variable Frequency Drive (VFD) manufactured by Rockwell Automation. It delivers 7.5 kW (10 HP) for both normal and heavy-duty applications running on a 3-phase 380480V AC power supply. [1, 2, 3, 4, 5]

Official technical documentation and specifications can be reviewed directly via the Rockwell Automation Technical Specifications Manual or the NHP PowerFlex 525 Datasheet. [1, 2]

Core Technical Specifications

Parameter [1, 2, 3, 4, 5, 6, 7]	Specification
Manufacturer	Allen-Bradley / Rockwell Automation
Product Line	PowerFlex 525 Series
Model / Catalog No.	25B-D017N104
Input Voltage	380480V AC (3-Phase, 50/60 Hz)
Output Voltage	0460V AC (3-Phase)
Output Current	17.0 Amps
Power Rating	7.5 kW (10 HP) Normal & Heavy Duty
Frame Size	Frame C
Enclosure Rating	IP20 / NEMA Open Type

Key Hardware & Control Features

Embedded Communications: Includes an integrated EtherNet/IP port for seamless network configuration, control, and data gathering. [1, 2]
Control Modes: Supports Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed Loop Velocity Vector Control, and Permanent Magnet Motor Control. [1, 2]
Integrated Hardware: Features a built-in dynamic braking transistor (Brake IGBT) and an onboard digital keypad/display for local configuration. [1, 2, 3]
Safety Option: Features embedded Safe Torque Off (STO) certified for SIL2/PLd Group 3 safety functionalities. [1, 2, 3, 4, 5]
EMC Filter: This specific model variant (N104) does not include an integrated EMC filter. [1]

Operating Conditions

Ambient Temperature: -20 C to 50 C (-4 F to 122 F).
Mounting Type : Panel mounting.

Embedded Communication and Flexible Control

With built-in EtherNet/IP, DeviceNet, and Modbus-TCP protocols, the PowerFlex 525 25B-D017N104 ensures seamless integration into modern automation systems. The drive supports both V/Hz and Sensorless Vector Control, adaptable for a wide range of motor types and load demands, while providing enhanced efficiency and quick setup via USB parameter clone.

Built-in Safety and Comprehensive Protection

The PowerFlex 525 features multiple protective functions, including Safe Torque Off (STO), as well as overvoltage, overcurrent, short circuit, and ground fault protection. This ensures a reliable and secure industrial operation, minimizing downtime and ensuring operator safety.

User-Friendly Operation and Versatile Design

Equipped with an intuitive LCD keypad and support for a remote keypad, the drive offers clear interaction and straightforward parameter adjustments. Its modular construction, compact dimensions, built-in cooling fan, and removable control module facilitate easy installation and maintenance.

FAQ's of 25B-D017N104 PowerFlex 525 7.5kW (10Hp) AC Drive:

Q: How do I install and connect the 25B-D017N104 PowerFlex 525 AC Drive?

A: Installation involves securing the drive to a panel using its mounting provisions and wiring the three-phase input (380-480V AC) and output terminals according to the screw terminal guides. Ensure the drive is within the recommended altitude (up to 1000 m) and temperature (-20C to 50C). Consult the user manual for detailed wiring and connection steps.

Q: What types of motors and applications is this drive suitable for?

A: The PowerFlex 525 25B-D017N104 is designed for controlling the speed of standard induction motors in industrial automation. It is ideal for conveyors, pumps, fans, and general motor speed control applications that require robust performance and precise regulation.

Q: When should I use the built-in Safe Torque Off (STO) feature?

A: The STO feature should be used whenever you need to ensure the drive cannot inadvertently start a motor, such as during maintenance or emergency stops. It safely removes torque-producing power from the motor without disconnecting main power, enhancing operational safety.

Q: Where can I access and set parameters for this drive?

A: Parameters can be accessed and set directly through the integrated LCD keypad on the front panel. For quick setup and parameter cloning, you can also use a USB connection with compatible software. Additionally, the removable control module allows easy transfer of settings if needed.

Q: What is the process for enabling regenerative braking with this drive?

A: The 25B-D017N104 supports regenerative braking with the addition of an external braking resistor. Connect the resistor to the designated terminals as specified in the manual, which allows the drive to dissipate excess energy when rapidly decelerating the motor, improving stopping performance.

Q: How does the drive protect against electrical faults and overheating?

A: It incorporates electronic and automatic protection against overvoltage, overcurrent, short circuit, and ground faults. An integrated cooling fan and overheating protection mechanisms maintain safe operating temperatures, ensuring extended reliability and uptime.

Q: What are the main benefits of using the PowerFlex 525 25B-D017N104 in industrial settings?

A: This drive offers energy efficiency (>95%), robust protection features, flexible control and communications, intuitive programming, and reliable motor control. Its modular, compact design and advanced safety functions reduce installation time and operating costs while boosting operational safety and productivity.
