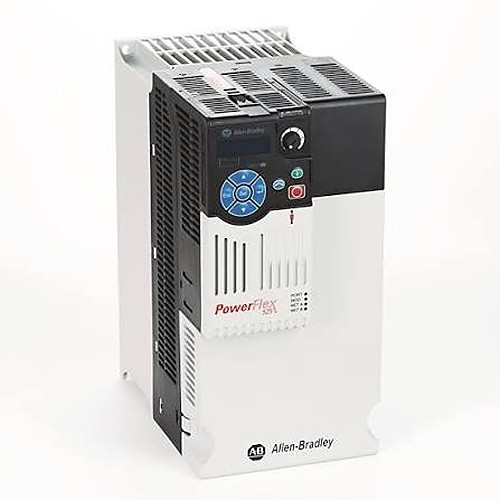

25B-D030N104 PowerFlex 525 15kW (20Hp) AC Drive

Send Inquiry

Request To Call Back

25B-D030N104 PowerFlex 525 15kW (20Hp) AC Drive

Name: 25B-D030N104 PowerFlex 525 15kW (20Hp) AC Drive
Brand: Noble Automation Controls
Price: 61000.0 INR
Availability: InStock

Price 61000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

25B-D030N104 PowerFlex 525 15kW (20Hp) AC Drive Specification

Efficiency
>= 96%

Shape
Rectangular

Feature
Built-in Ethernet/IP & RS-485, Safe Torque-Off, USB Programming Port, Removable Control Module

Surface Finish
Matte/Gloss Finish

Power Factor
>= 0.98

Connector Type
Industrial Screw Terminals

Operating Temperature
-20C to +50C

Humidity %
5% to 95% (non-condensing)

Mounting Type
Panel Mount, DIN Rail

Insulation Material
Polycarbonate

Overheating Protection
Yes, Inbuilt Thermal Protection

IP Rating
IP20

Product Type
AC Drive

Application
Industrial Motor Control, Automation, HVAC

Protection Level
Overload, Short-circuit, Overcurrent

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480V AC

Energy Consumption
Optimized for energy saving with adjustable parameters

Output Type
Three Phase AC

Color
White & Black

Dimension (L*W*H)
419 x 190 x 236 mm

Weight
13.2 kg

Input Voltage
380-480V AC

Phase
Three Phase

Size
Frame Size 6

Connection Type
Screw Terminal, Ethernet/IP, Modbus

Material
Polycarbonate, Metal

Relay Outputs
1

Digital Inputs
7

Vibration Resistance
1.0g (10-55 Hz)

Display Type
LED/LCD Display

Communication Protocols
EtherNet/IP, DeviceNet, Modbus RTU

Analog Inputs
2

Standards Compliance
UL, CE, cUL, RoHS

Programming Interface
USB, Keypad, Software Based

Motor Power
15 kW (20 HP)

Model Number
25B-D030N104

Digital Outputs
2

Storage Temperature
-40C to +70C

Cooling Method
Internal Fan Cooling

Altitude
Up to 1000 m without derating

Analog Outputs
1

Output Current
30 A

Braking Unit
Built-in Braking Transistor

Control Method
V/Hz, Sensorless Vector Control

25B-D030N104 PowerFlex 525 15kW (20Hp) AC Drive Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
10 Minutes

25B-D030N104 PowerFlex 525 15kW (20Hp) AC Drive About

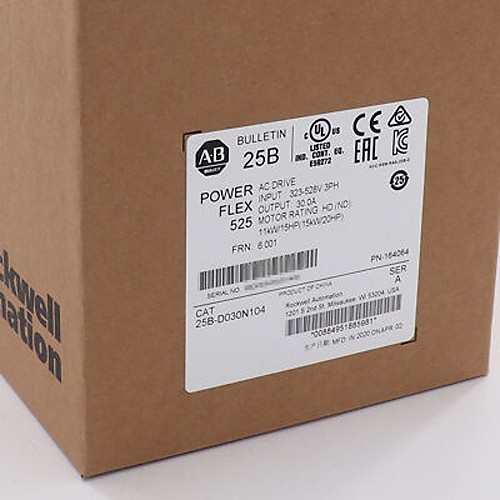

The model number 25B-D030N104 refers to an Allen-Bradley PowerFlex 525 AC Drive manufactured by Rockwell Automation. The "BOX" designation typically indicates a brand-new unit factory-sealed in its original packaging. [1, 2, 3, 4]

Technical Specifications

According to official product documentation from Rockwell Automation and industrial suppliers like Radwell International, this variable frequency drive (VFD) features the following parameters: [1, 2]

Input Voltage: 380...480V AC, 3-Phase
Output Amperage: 30 Amps
Normal Duty Power Rating: 20 Hp (15 kW)
Heavy Duty Power Rating: 15 Hp (11 kW)
Enclosure Rating: IP20 NEMA Open-Type
Control/Communication: Embedded EtherNet/IP and Safe Torque Off (STO) safety features [1, 2, 3, 4]

Sourcing & Retail Availability

If you are looking to purchase this unit "New in Box", it is actively stocked across several online platforms:

Industrial Trading Platforms: Verified suppliers on IndiaMART offer the drive starting around 93,993. It can also be found listed by vendors on Tradeindia.com for approximately 99,116. [1, 2]
Cross-Border Retailers: The factory-sealed unit is available via e-commerce importers like Ubuy India for roughly 101,842 and Desertcart India for approximately 221,386. [1, 2]
Global Marketplaces: New-in-box units are regularly traded by industrial automation liquidators on eBay, with prices generally ranging from $1,139 to $1,205 USD depending on the seller and manufacture date code. [1, 2, 3]

Please let me know if you need help verifying a specific series version, checking compatible accessories (like a NEMA 1 conduit box kit), or finding step-by-step installation manual

Advanced Industrial Motor Control

Engineered for industrial environments, the PowerFlex 525 25B-D030N104 drive delivers precise and efficient control of three-phase motor systems. Its sensorless vector and V/Hz control methods enhance flexibility, while built-in safety features like Safe Torque-Off ensure equipment and personnel protection. The drive's intuitive interfaces make setup and operation simple, whether through the keypad, USB, or software solutions.

Versatile Communication and Connectivity

With built-in EtherNet/IP, DeviceNet, and Modbus RTU support, the PowerFlex 525 seamlessly integrates into modern automation systems. Industrial screw terminals provide secure connections, and the removable control module adds to the drive's flexibility in installation and maintenance. The drive's compact, rugged frame enables quick panel or DIN rail mounting, perfect for space-constrained industrial enclosures.

Optimized Efficiency and Robust Design

This AC drive prioritizes operational efficiency, achieving energy savings with advanced parameter adjustments. Its inbuilt thermal protection, vibration resistance, and wide humidity and temperature tolerance ensure reliable performance under harsh industrial conditions. The IP20 rating and sturdy polycarbonate/metal construction make it a dependable choice for demanding automation settings.

FAQ's of 25B-D030N104 PowerFlex 525 15kW (20Hp) AC Drive:

Q: How do I connect and program the 25B-D030N104 PowerFlex 525 AC Drive?

A: You can connect the drive using industrial screw terminals for secure power and motor wiring. Programming can be accomplished via the built-in keypad, USB interface with supported software, or remotely using Ethernet/IP or Modbus RTU. The removable control module also simplifies setup and maintenance.

Q: What motor types and applications is this drive suitable for?

A: The 25B-D030N104 supports three-phase AC motors and is optimized for industrial motor control, automation processes, and HVAC systems. Its sensorless vector and V/Hz control modes provide flexibility for fans, pumps, conveyors, and general machinery.

Q: When is the built-in braking transistor used in operation?

A: The built-in braking transistor is used during rapid deceleration or stopping of the motor, dissipating excess energy safely to prevent overvoltage and ensure controlled stopping for high-inertia loads.

Q: Where can the PowerFlex 525 be installed, and what environmental conditions can it withstand?

A: This drive is designed for panel or DIN rail installation within industrial control cabinets. It operates reliably in environments ranging from -20C to +50C, with up to 95% humidity (non-condensing), and can be stored between -40C and +70C. The drive's IP20 rating and vibration resistance enable it to handle demanding site conditions.

Q: What protective features are included for safe operation?

A: Safety and protection features include overload, short-circuit, and overcurrent protections, Safe Torque-Off function, and inbuilt thermal protection to prevent overheating and equipment damage. The drive also complies with major safety standards such as UL, CE, and cUL.

Q: How does the drive contribute to energy efficiency and system reliability?

A: The PowerFlex 525 achieves energy savings through optimized motor control parameters and high drive efficiency (96%). Its power factor of at least 0.98 further reduces wasted energy, improving overall system reliability and lowering operational costs.
