25B-D024N104 PowerFlex 525 11kW (15Hp) AC Drive

Send Inquiry

Request To Call Back

25B-D024N104 PowerFlex 525 11kW (15Hp) AC Drive

Name: 25B-D024N104 PowerFlex 525 11kW (15Hp) AC Drive
Brand: Noble Automation Controls
Price: 51000.0 INR
Availability: InStock

Price 51000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

25B-D024N104 PowerFlex 525 11kW (15Hp) AC Drive Specification

IP Rating
IP20 (Standard)

Surface Finish
Matte Finish

Connector Type
Screw Terminals

Insulation Material
High Grade Engineering Plastic

Mounting Type
Panel Mount

Shape
Rectangular

Overheating Protection
Yes, Integrated Thermal Protection

Efficiency
Up to 98%

Feature
Compact, Modular, Easy to Install, Safe Torque Off (STO)

Humidity %
< 95% non-condensing

Power Factor
> 0.95

Operating Temperature
-20C to 50C

Product Type
AC Drive (VFD)

Application
Industrial Motor Control, Pumps, Fans, Conveyor Systems

Protection Level
Integrated Electronic Protection

Frequency (MHz)
Operating Frequency: 50/60 Hz

Rated Voltage
323-528V AC (Input)

Energy Consumption
Highly Efficient - Energy Saving

Output Type
Adjustable Frequency Output for Motor Control

Color
Standard Black/Grey (Drive), Brown (Package)

Dimension (L*W*H)
Approx. 190 mm x 130 mm x 260 mm (Box Size)

Weight
Approx. 3.7 kg

Input Voltage
323-528V AC, 3-Phase

Phase
Three Phase

Size
Frame Size C

Material
Plastic/Metal Housing

Connection Type
Terminal Connection

No Of Poles
Variable (Application Specific)

Firmware
7.001

Communication Ports
EtherNet/IP, Modbus RTU (Standard and Optional Modules)

Motor Rating
11 kW (15 HP)

Series
PowerFlex 525

Model Number
25B-D024N104

Safety Functionality
Safe Torque Off (STO)

Output Current
24.0A

Control Method
V/Hz, Sensorless Vector, Closed Loop with Encoder Card (optional)

Display
Integrated Keypad with LCD Display

Braking Capability
Dynamic Braking (with optional resistor)

Enclosure
Open Type

Programmability
Configurable via LCD HMI, RSLogix 5000, Connected Components Workbench

Standards Compliance
EN 61800-5-1, EN 61800-3

25B-D024N104 PowerFlex 525 11kW (15Hp) AC Drive Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
10 Minutes

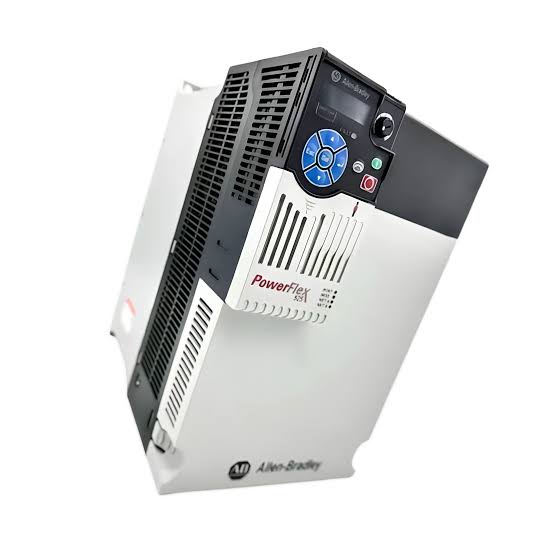

About 25B-D024N104 PowerFlex 525 11kW (15Hp) AC Drive

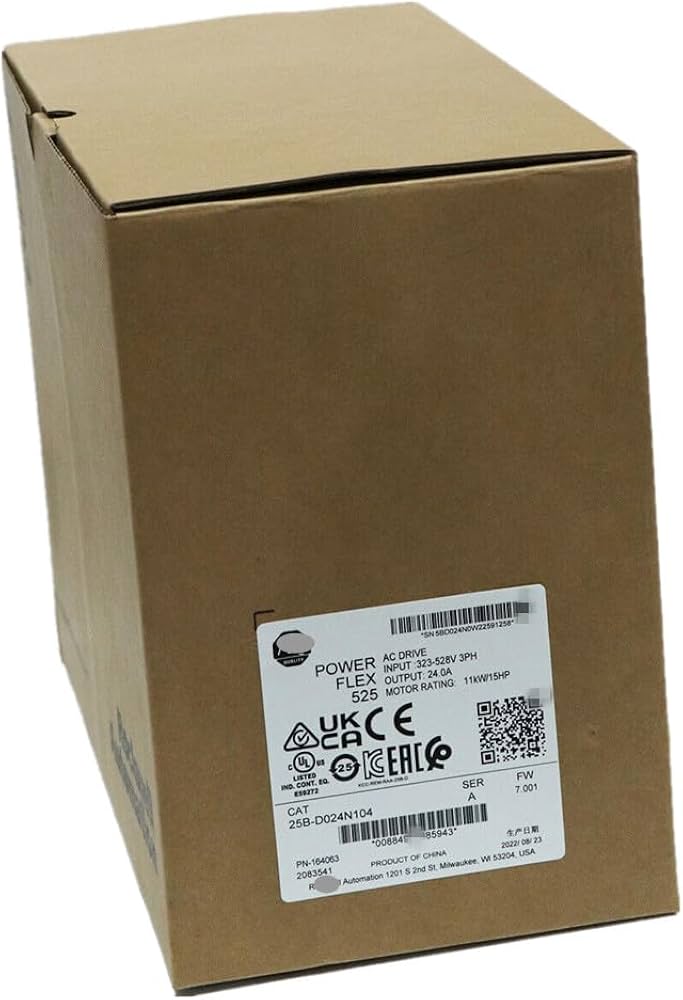

The model number 25B-D024N104 refers to an Allen-Bradley PowerFlex 525 Variable Frequency Drive (VFD) manufactured by Rockwell Automation. The term "BOX" indicates you are likely looking for a factory-sealed or "New in Box" unit for your industrial setup. [1, 2, 3, 4]

Technical Specifications

Series: PowerFlex 525 AC Drive
Power Rating: 11 kW (15 HP) for both normal and heavy-duty applications
Voltage Input: 380480V AC, 3-Phase
Output Current: 24 Amps
Frame Size: Frame D
Enclosure Rating: IP20 NEMA / Open Type
Built-in Features: Embedded EtherNet/IP communications and Safe Torque-Off safety functionality
EMC Filter: No internal filter included [1, 2, 3, 4, 5]

Key Feature Highlights

Modular Design: Features a detachable control core and power module, allowing you to configure the software and install the hardware at the same time to speed up deployment. [1]
Versatile Motor Control: Supports multiple motor control options including Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), and closed-loop velocity vector control. [1]
Mainsfree Programming: You can easily configure the drive parameters via a standard USB connection without needing to power up the main drive line.

Versatile Motor Control

The PowerFlex 525 11kW AC Drive supports a variety of control methods, including V/Hz and sensorless vector, offering flexibility for diverse motor control needs. With optional closed-loop control using an encoder card, it accommodates precision-demanding applications such as conveyors, fans, and pumps effectively.

User-Friendly Configuration

Equipped with an integrated LCD keypad, this drive is designed for ease of installation and programming. Users can configure the drive directly or utilize industry-standard software such as RSLogix 5000 and Connected Components Workbench for more advanced setup, streamlining commissioning and reducing downtime.

Robust Safety and Protection

Safety is enhanced by the integrated Safe Torque Off (STO) function and comprehensive electronic protection. The unit also offers dynamic braking with an optional resistor and features robust enclosure materials, IP20 protection, and built-in thermal and overload safeguards, ensuring dependable performance even in demanding industrial settings.

FAQ's of 25B-D024N104 PowerFlex 525 11kW (15Hp) AC Drive:

Q: How can the PowerFlex 525 25B-D024N104 AC Drive be programmed?

A: The PowerFlex 525 drive can be programmed using its integrated LCD keypad for direct setup or through software like RSLogix 5000 and Connected Components Workbench. This allows flexible configuration to match your specific motor control requirements, including network integration and feature customization.

Q: What types of motor control methods does this drive support?

A: This drive supports V/Hz control, sensorless vector control, and can be equipped for closed-loop feedback using an optional encoder card. These options make it suitable for a range of industrial applications where standard speed regulation or enhanced torque and speed accuracy are required.

Q: When is it necessary to add an encoder card to the drive?

A: An encoder card is recommended when you need closed-loop control for applications demanding precise motor speed and position feedback, such as in advanced conveyors or position-sensitive equipment. It is optional and can be installed based on application needs.

Q: Where should the PowerFlex 525 be installed?

A: This model is intended for panel mounting in industrial environments. Ensure the ambient temperature ranges from -20C to 50C and humidity stays below 95% non-condensing. The drive's IP20 rating and robust housing suit it for protected electrical enclosures.

Q: What are the main benefits of using the PowerFlex 525 AC Drive?

A: Key benefits include high energy efficiency (up to 98%), advanced safety features such as Safe Torque Off, flexible communication (EtherNet/IP, Modbus RTU), compact modular design, and ease of installation and programming, making it a reliable choice for diverse automation needs.

Q: How does the drive enhance safety during operation?

A: The integrated Safe Torque Off (STO) function ensures the motor cannot generate torque, providing personnel and equipment protection during maintenance or emergency stops. Additional integrated electronic and thermal protections help safeguard the drive and motor system.

Q: What process should be followed to connect this drive to a motor system?

A: First, mount the drive securely onto a panel as specified. Connect the three-phase power supply and motor leads to the appropriate screw terminals. Optional communication modules and encoder inputs can be installed as needed. Finally, configure system parameters using the LCD HMI or compatible programming software before initiating operation.
