25B-D1P4N104 PowerFlex 525 0.4kW (0.5Hp) AC Drive

Name: 25B-D1P4N104 PowerFlex 525 0.4kW (0.5Hp) AC Drive
Brand: Noble Automation Controls
Price: 15000.0 INR
Availability: InStock

Price 15000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

25B-D1P4N104 PowerFlex 525 0.4kW (0.5Hp) AC Drive Specification

IP Rating
IP20 (standard, unshielded)

Surface Finish
Matte/Gloss (molded plastic finish)

Overheating Protection
Yes, via integrated thermal sensing

Operating Temperature
-20C to +50C (full rating)

Insulation Material
Plastic/Polycarbonate (outer housing)

Connector Type
Screw terminals

Efficiency
Up to 97%

Humidity %
5% to 95% non-condensing

Feature
Built-in EMI filter, Removable control core, Safe Torque Off

Shape
Rectangular

Mounting Type
Panel Mount or DIN Rail

Power Factor
>0.96

Product Type
AC Drive (Variable Frequency Drive)

Application
Industrial Motor Control / Automation

Protection Level
Overcurrent, Overvoltage, Undervoltage, Short circuit, Ground fault

Frequency (MHz)
50/60 Hz

Rated Voltage
240V AC

Energy Consumption
High Efficiency (Low Power Consumption design)

Output Type
3-phase motor output

Color
Black & White

Dimension (L*W*H)
152 mm x 72 mm x 136 mm

Weight
1.1 kg

Input Voltage
100-240V AC

Size
Frame A

Phase
Three Phase

Material
Polycarbonate, Metal

No Of Poles
3

Connection Type
Screw terminal

Model Number
25B-D1P4N104

Programming
Remote via Connected Components Workbench (CCW)

Standards
IEC 61800-5-1, EN 61800-3, UL 508C

Analog Outputs
1 AO

Motor Power Rating
0.4 kW (0.5 HP)

Control Method
V/Hz, Sensorless Vector Control

Communication Ports
EtherNet/IP, RS485, USB

Digital Inputs
7 programmable DI

Altitude Rating
Up to 1000m without derating

Relay Outputs
1 programmable relay

Microprocessor
32-bit high performance CPU

Output Current
1.4A

Braking Capability
Internal brake chopper (up to 2 HP)

Input Current
3.2A

Cooling Method
Natural Convection / Fan cooled

Display Type
LCD with keypad

Analog Inputs
2 programmable AI

25B-D1P4N104 PowerFlex 525 0.4kW (0.5Hp) AC Drive Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
10 Minutes

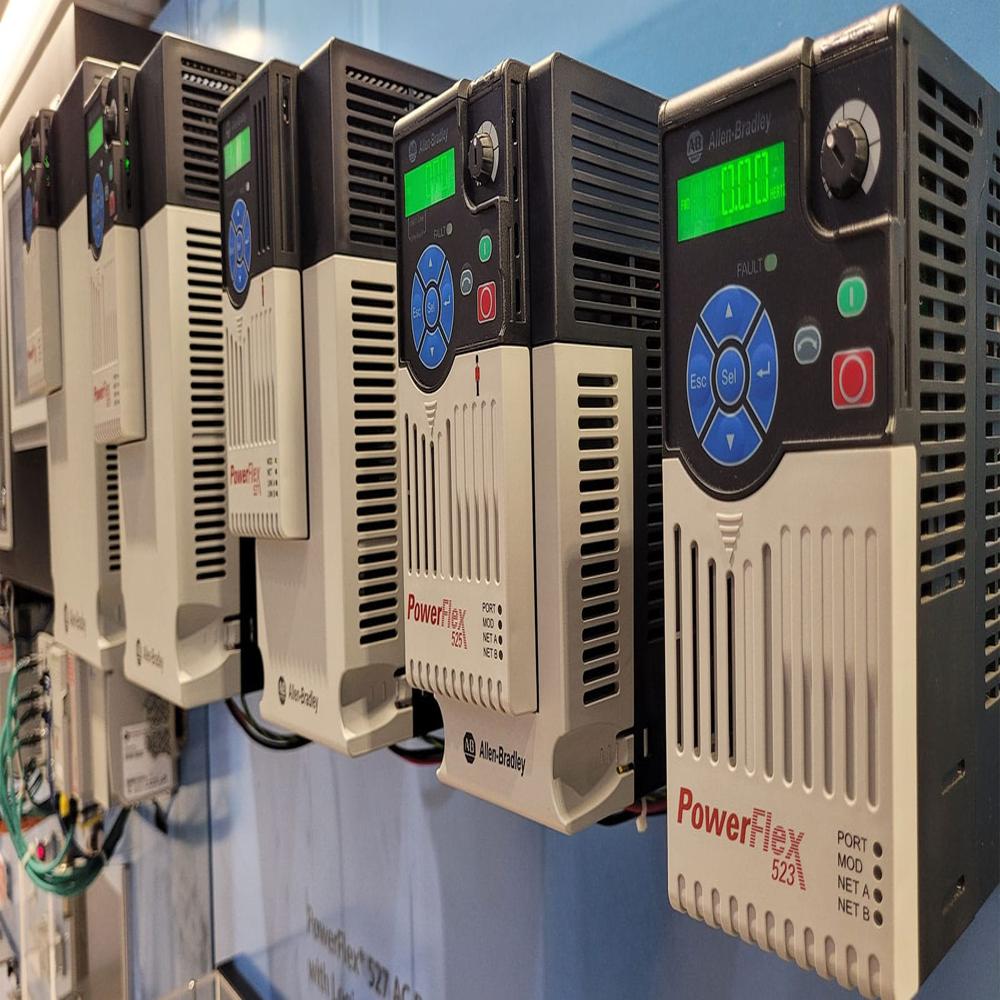

About 25B-D1P4N104 PowerFlex 525 0.4kW (0.5Hp) AC Drive

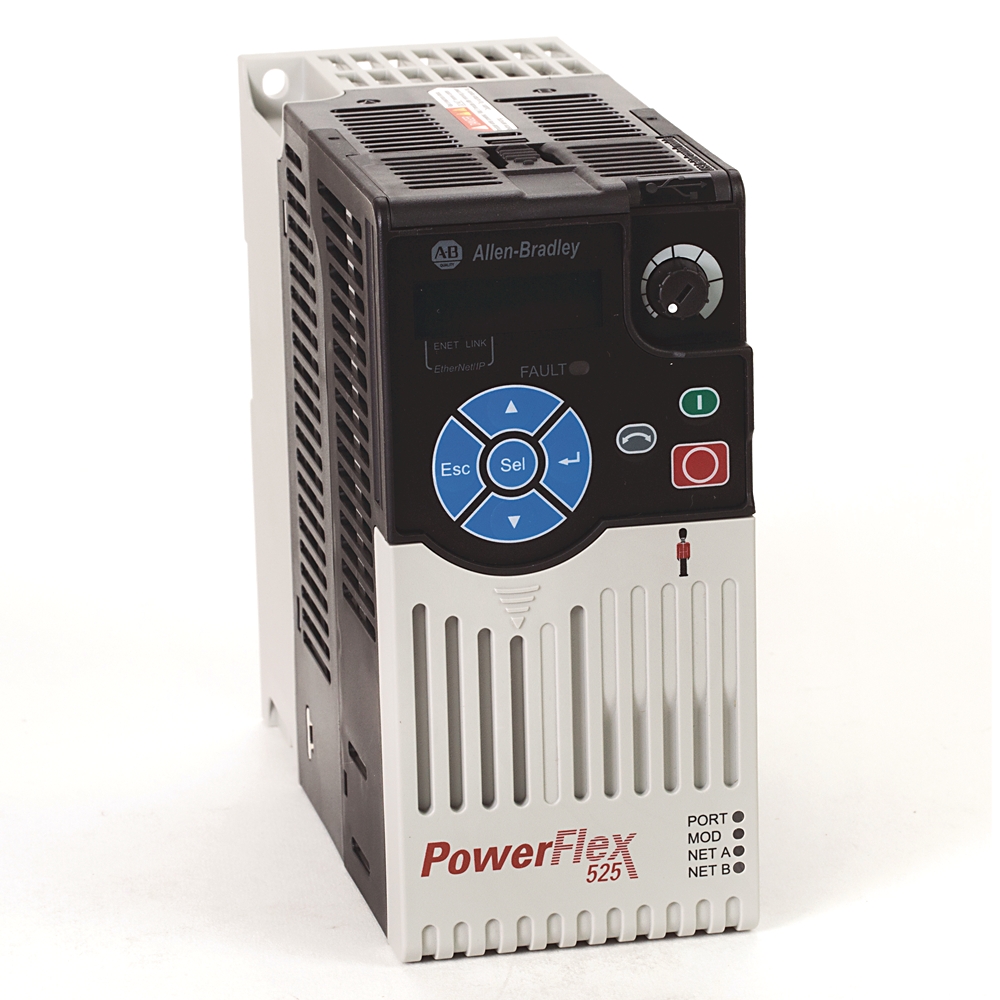

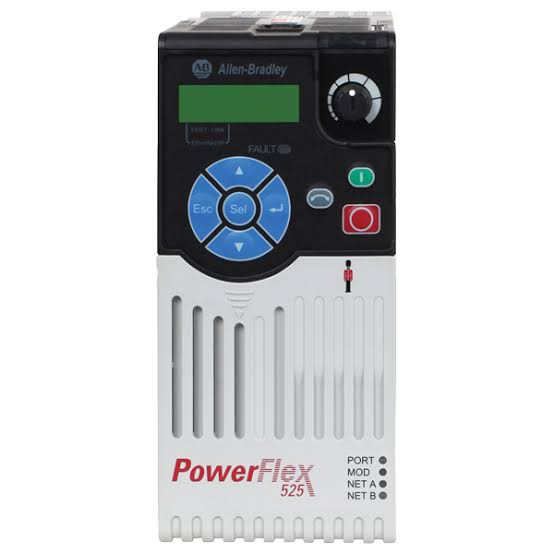

The Allen-Bradley 25B-D1P4N104 is an adjustable frequency AC drive from the PowerFlex 525 series manufactured by Rockwell Automation. This specific unit is a Frame A, low-power variable frequency drive (VFD) designed for three-phase industrial applications up to 480V AC. [1, 2, 3, 4, 5]

Official documentation and specifications are available in the PowerFlex 520-Series Technical Data Sheet and the PowerFlex 520-Series User Manual. [1, 2]

Core Specifications

The main hardware parameters retrieved from the Rockwell Automation Product Configurator include: [1]

Input Voltage Range: 323 to 528V AC, 3-Phase (400V / 480V Class)
Output Current: 1.4 Amps
Power Rating: 0.4 kW (0.5 HP) for both Normal and Heavy Duty
Enclosure Rating: IP20 / NEMA Open Type
Physical Frame Size: Frame A
EMC Filter: Not Included (standard version) [1, 2, 3, 4]

Key Built-in Features

The PowerFlex 525 architecture balances advanced control with high connectivity across several key features: [1]

Integrated Communications: Features an embedded EtherNet/IP port and an integrated RS485 connection supporting Modbus RTU.
Safety Integration: Built-in hardwired Safe Torque-Off (STO) certified to SIL2/PLd standards.
Motor Control Options: Supports Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), and closed-loop velocity vector control (via an optional encoder card).
I/O Capacity: Equipped with 7 digital inputs, 2 analog inputs, 1 analog output, 2 opto-outputs, and 2 relay outputs. [1, 2, 3, 4, 5]

Special Mounting and Derating Constraints

Per the PowerFlex 525 Literature Library, the 25B-D1P4N104 model is subject to specific thermal and orientation exceptions compared to the rest of the PowerFlex 520 family: [1]

No Horizontal Mounting: This specific model cannot be mounted using any horizontal mounting method. It must be installed vertically. [1, 2]
Reduced Temperature Profile: The rated ambient operating temperature limits are reduced by 5 C (9 F) for standard mounting configurations. [1]
Fan Kit Limitation: When utilizing the optional Control Module Fan Kit, the maximum operating threshold must be reduced by 10 C (18 F)

Advanced Industrial Motor Control

Engineered for rigorous automation needs, the PowerFlex 525 AC Drive delivers reliable and flexible performance in a compact frame. Supporting both panel and DIN rail mounting, this drive integrates seamlessly into a variety of applications, ensuring optimal motor control with advanced V/Hz and sensorless vector methods.

User-Friendly Operation and Configuration

Featuring an LCD display with an integrated keypad, the drive simplifies on-site configuration and status monitoring. Its remote programming ability via Connected Components Workbench (CCW) enhances convenience, enabling users to adjust parameters efficiently and perform diagnostics with minimal downtime.

Robust Protection and Safety Features

This drive incorporates comprehensive protection mechanisms, including overcurrent, overvoltage, undervoltage, short circuit, and ground fault safeguards. It also supports safe torque off functionality, offering an extra layer of operational safety essential for critical industrial applications.

FAQ's of 25B-D1P4N104 PowerFlex 525 0.4kW (0.5Hp) AC Drive:

Q: How do I program the 25B-D1P4N104 PowerFlex 525 AC Drive?

A: You can program the drive either locally via the built-in LCD keypad or remotely by connecting to a PC using Connected Components Workbench (CCW) software via the USB or EtherNet/IP communication ports.

Q: What benefits does the internal brake chopper provide?

A: The internal brake chopper enhances deceleration control for dynamic loads up to 2 HP, helping maintain smooth and safe stopping while protecting both the drive and the connected motor during rapid speed reductions.

Q: Where can I mount the PowerFlex 525 drive in my facility?

A: This drive is designed for flexible installation and can be panel mounted or mounted on a DIN rail. Its compact Frame A design makes it suitable for a variety of industrial panel layouts.

Q: What protection features are included to safeguard the drive and motor?

A: The PowerFlex 525 provides comprehensive protection, including overcurrent, overvoltage, undervoltage, short circuit, and ground fault detection. It also integrates thermal sensing for overheating protection and a Safe Torque Off (STO) function for enhanced safety.

Q: How can the drive ensure efficient energy consumption?

A: The drive boasts a high efficiency rate of up to 97% and is designed with low power consumption, assisting in reducing operational energy costs across your automation processes.

Q: When should I consider using the sensorless vector control mode?

A: Sensorless vector control is ideal for applications requiring higher dynamic performance, such as precise speed and torque regulation in industrial automation, especially when feedback devices are not in use.
