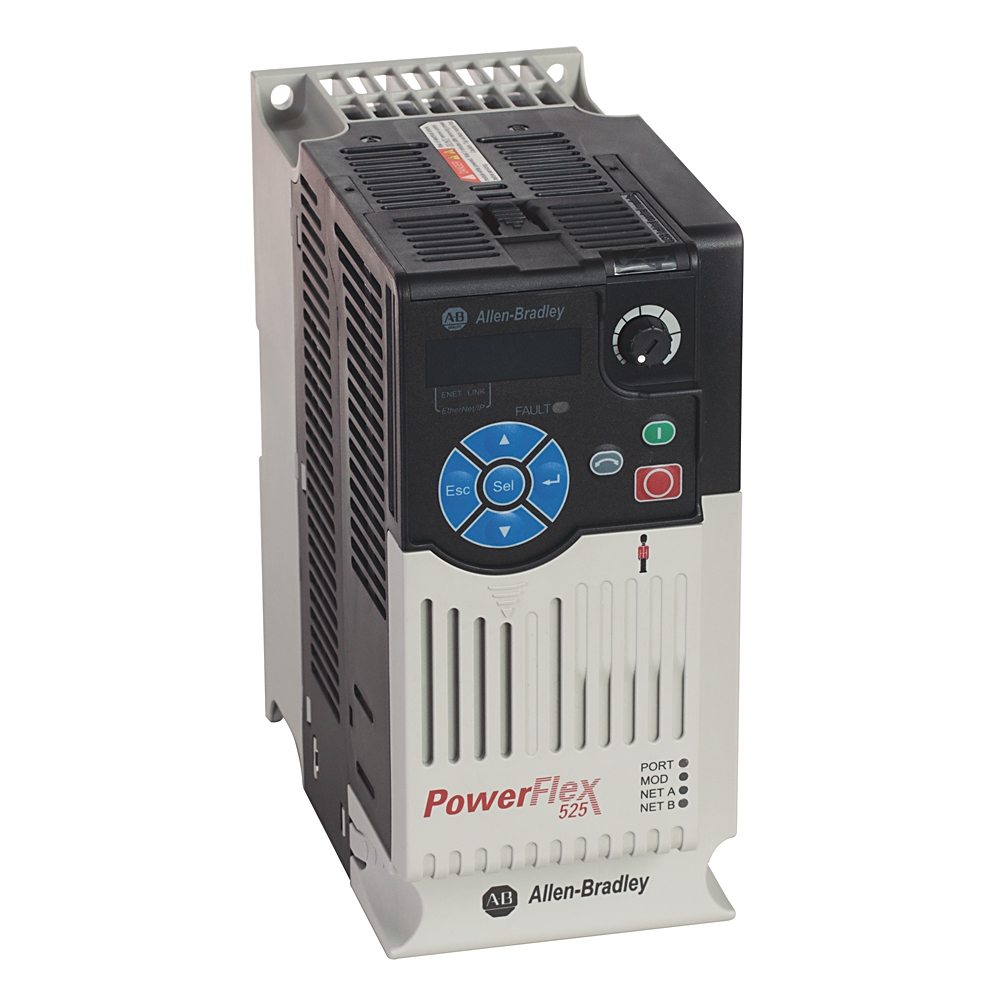

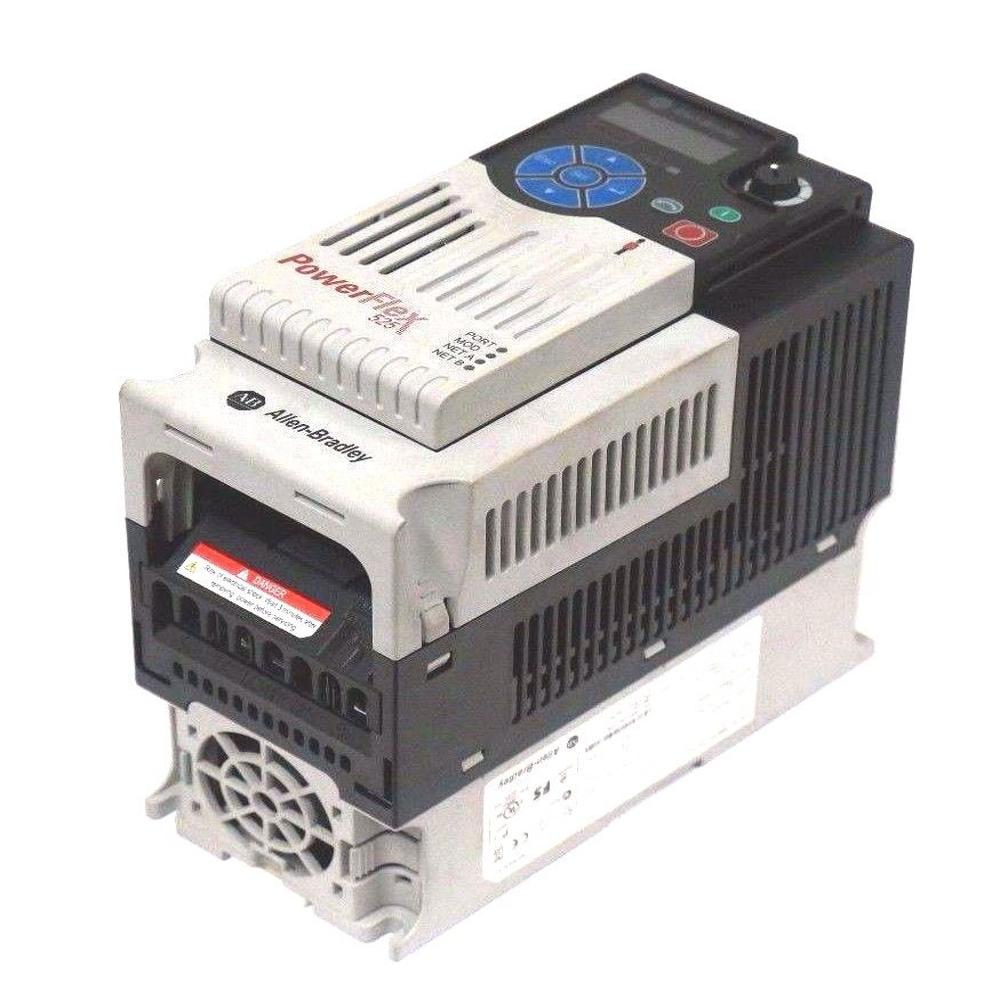

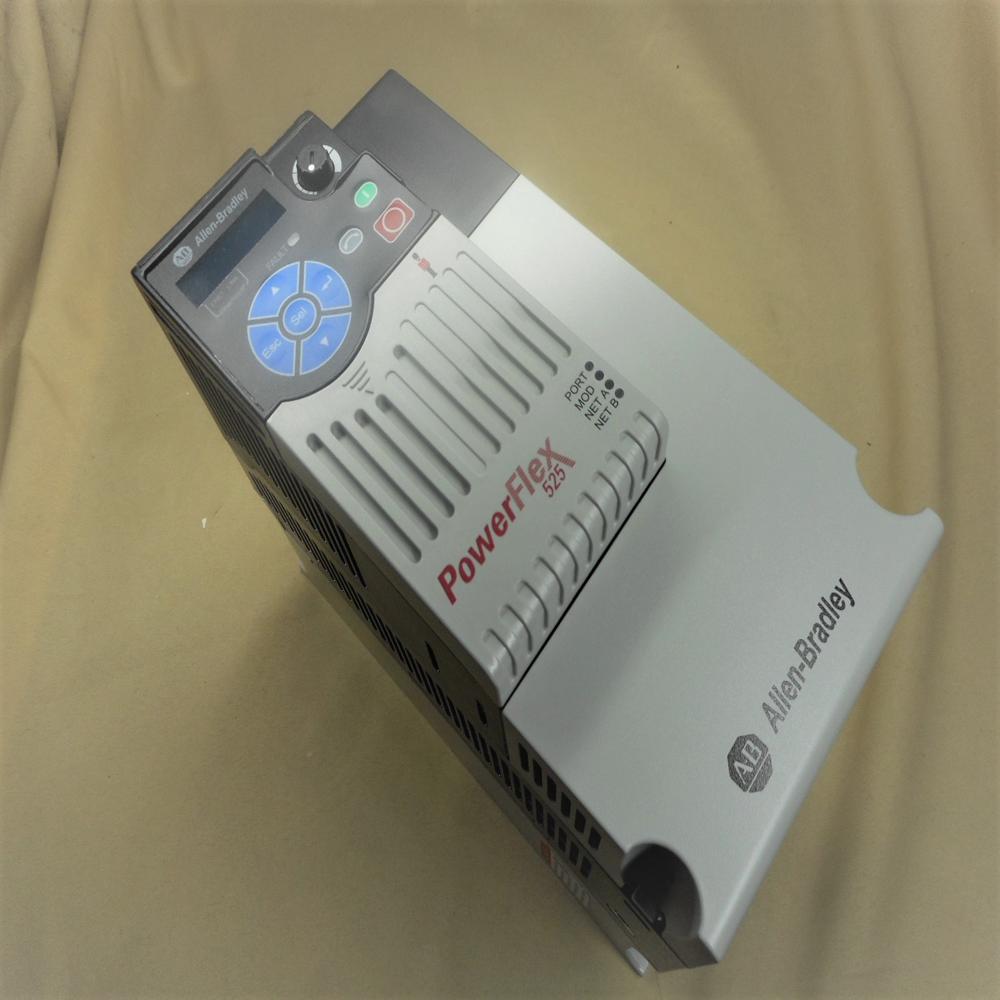

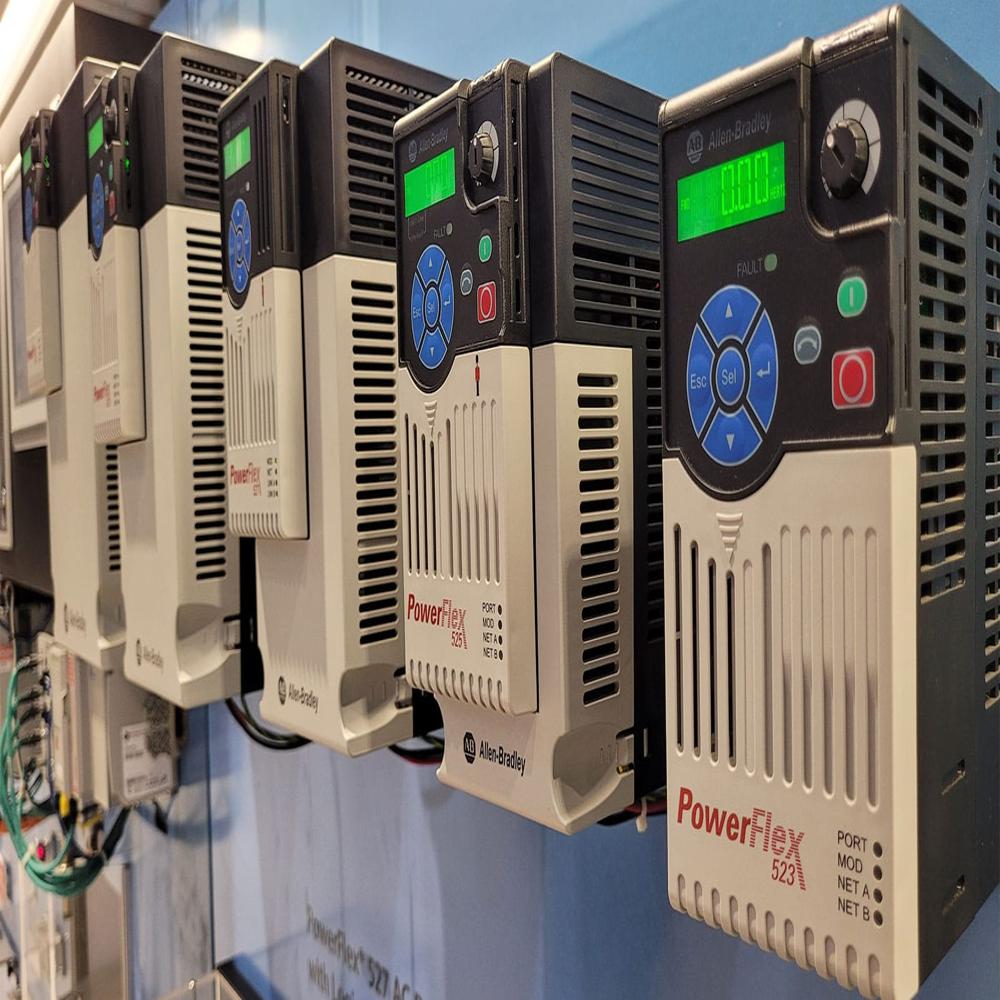

25B-D013N104 PowerFlex 525 5.5kW (7.5Hp) AC Drive

Name: 25B-D013N104 PowerFlex 525 5.5kW (7.5Hp) AC Drive
Brand: Noble Automation Controls
Price: 35000.0 INR
Availability: InStock

Price 35000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

25B-D013N104 PowerFlex 525 5.5kW (7.5Hp) AC Drive Specification

Shape
Rectangular

Mounting Type
Panel Mount

Feature
Integrated EtherNet/IP and Safe Torque-Off

IP Rating
IP20 / NEMA UL Open Type

Operating Temperature
-20C to 50C

Power Factor
>0.95

Humidity %
0-95% non-condensing

Overheating Protection
Yes, built-in thermal guard

Surface Finish
Matte

Efficiency
Up to 98%

Insulation Material
Reinforced Insulation

Connector Type
Terminal Block

Product Type
AC Drive

Application
Industrial Automation, Motor Control

Protection Level
Overload, Overvoltage, Short Circuit

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480 VAC

Energy Consumption
High Efficiency Class

Output Type
Adjustable Frequency AC

Color
Gray/Black

Dimension (L*W*H)
185 x 130 x 176 mm

Weight
2.7 kg

Input Voltage
380-480 VAC

Size
Frame B

Phase
Three Phase

Connection Type
Screw Terminal

Material
Polycarbonate and Metal

Analog Input
2 (0-10V, 4-20mA selectable)

Output Current
13A

Communication Protocols
EtherNet/IP, Modbus RTU, DSI

Braking
Built-in Brake Chopper

Motor Power
5.5 kW (7.5 Hp)

Control Method
V/Hz, Sensorless Vector Control

Display
LCD Display with Keypad

Series
PowerFlex 525

Digital Input
7 (Configurable)

Model Number
25B-D013N104

Relay Output
2

Analog Output
1

25B-D013N104 PowerFlex 525 5.5kW (7.5Hp) AC Drive Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
10 Minutes

About 25B-D013N104 PowerFlex 525 5.5kW (7.5Hp) AC Drive

The Allen-Bradley 25B-D013N104 is a PowerFlex 525 Adjustable Frequency AC Drive manufactured by Rockwell Automation. It features a 5.5 kW (7.5 HP) power rating, operates on a 380480V AC 3-phase input, and delivers a 13 Amp output current. [1, 2, 3, 4, 5]

Official documentation and technical details can be downloaded directly via the Rockwell Automation PowerFlex 520-Series Specifications Datasheet or the comprehensive PowerFlex 520-Series User Manual. [1, 2]

Technical Specifications

Product Line: PowerFlex 525 Series
Input Voltage: 380...480V AC, 3-Phase (50/60 Hz)
Output Current: 13.0 Amps
Power Rating: 5.5 kW / 7.5 HP (for both Normal and Heavy Duty)
Frame Size: Frame C
Enclosure Rating: IP20 NEMA / Open Type
EMC Filter: Not Included (indicated by the "104" suffix; "114" models include the filter)
Braking: Integral Brake IGBT included [1, 2, 3, 4, 5]

Control & Safety Features

Motor Control: Supports V/Hz, Sensorless Vector Control (SVC), Closed Loop Velocity Vector Control, and Permanent Magnet Motor Control.
Safety Integration: Built-in hardwired Safe Torque-Off (STO) certified for SIL2 / Cat 3.
Embedded I/O: 7 Digital Inputs, 2 Analog Inputs, 1 Analog Output, 2 Opto Outputs, and 2 Relay Outputs.
Communication: Embedded EtherNet/IP port and integral RS485/DSI communication. [1, 2, 3, 4, 5]

Mounting & Dimensions

Mounting Options: Supports standard Panel Mounting or DIN rail installation.
Physical Dimensions: Frame C drives in this configuration typically measure 220 mm Height x 109 mm Width x 184 mm Depth

High-Performance Motor Control

The PowerFlex 525 25B-D013N104 AC Drive provides sophisticated motor management with selectable V/Hz and sensorless vector control methods. Its output current of up to 13A efficiently powers motors up to 5.5 kW (7.5 Hp), making it suitable for diverse industrial automation tasks requiring precise speed and torque control.

Versatile Communication Options

This drive enhances integration flexibility through built-in support for EtherNet/IP, Modbus RTU, and DSI protocols. Connecting seamlessly to other automation equipment, it streamlines installation and reduces system complexity, positioning it as an ideal choice for modern, connected factories.

Advanced Protection and Safety Features

The drive is engineered with comprehensive protection mechanisms, including overload, overvoltage, and short circuit safeguards. It also features a Safe Torque-Off input and overheating protection. These ensure both equipment and operator safety, helping prolong system life and minimize downtime.

FAQ's of 25B-D013N104 PowerFlex 525 5.5kW (7.5Hp) AC Drive:

Q: How do I configure and operate the 25B-D013N104 PowerFlex 525 AC Drive?

A: The drive can be configured via its integrated LCD display and keypad, allowing for easy setup of parameters such as control method, motor details, and I/O assignments. For operation, simply install it using the screw terminal connections, power up, and use the display or EtherNet/IP interface for control.

Q: What communication protocols does this AC drive support for integration with industrial networks?

A: The PowerFlex 525 25B-D013N104 supports EtherNet/IP, Modbus RTU, and DSI protocols, enabling seamless integration into a wide variety of modern industrial networks and control architectures.

Q: When is it appropriate to use sensorless vector control versus V/Hz control on this drive?

A: Sensorless vector control is recommended when greater dynamic performance and torque control are needed, typically in applications requiring precise motor speed regulation under variable load. V/Hz control is suitable for simpler applications with less demanding speed and torque requirements.

Q: Where should the 25B-D013N104 AC drive be installed in an industrial environment?

A: This AC drive is designed for panel mounting within a protected control cabinet. Ensure the installation location is within the recommended temperature range (-20C to 50C) and meets IP20/NEMA UL Open Type environmental conditions for optimal performance and safety.

Q: What process is involved in enabling the Safe Torque-Off feature?

A: Safe Torque-Off (STO) is activated by wiring the appropriate input terminal to the safety relay or controller. Once engaged, STO electronically isolates motor power, preventing torque production and providing a crucial safety function during maintenance or emergency situations.

Q: How does the built-in brake chopper enhance drive performance?

A: The integrated brake chopper efficiently dissipates excess energy during rapid deceleration or stopping of high-inertia loads, ensuring smooth stopping performance and protecting the drive from potential overvoltage conditions.

Q: What are the primary benefits of using the 25B-D013N104 PowerFlex 525 AC Drive in industrial applications?

A: This drive offers high efficiency (up to 98%), robust motor protection, flexible communication, and easy configuration, resulting in optimized energy consumption, reduced downtime, and reliable automation-key factors for productivity in modern industry.
